Shief For Server Rack Cabinet (7245501-7245523)

SKU 7245501-7245523 Categories ,

ST 3dB Fiber Optical Attenuator-2

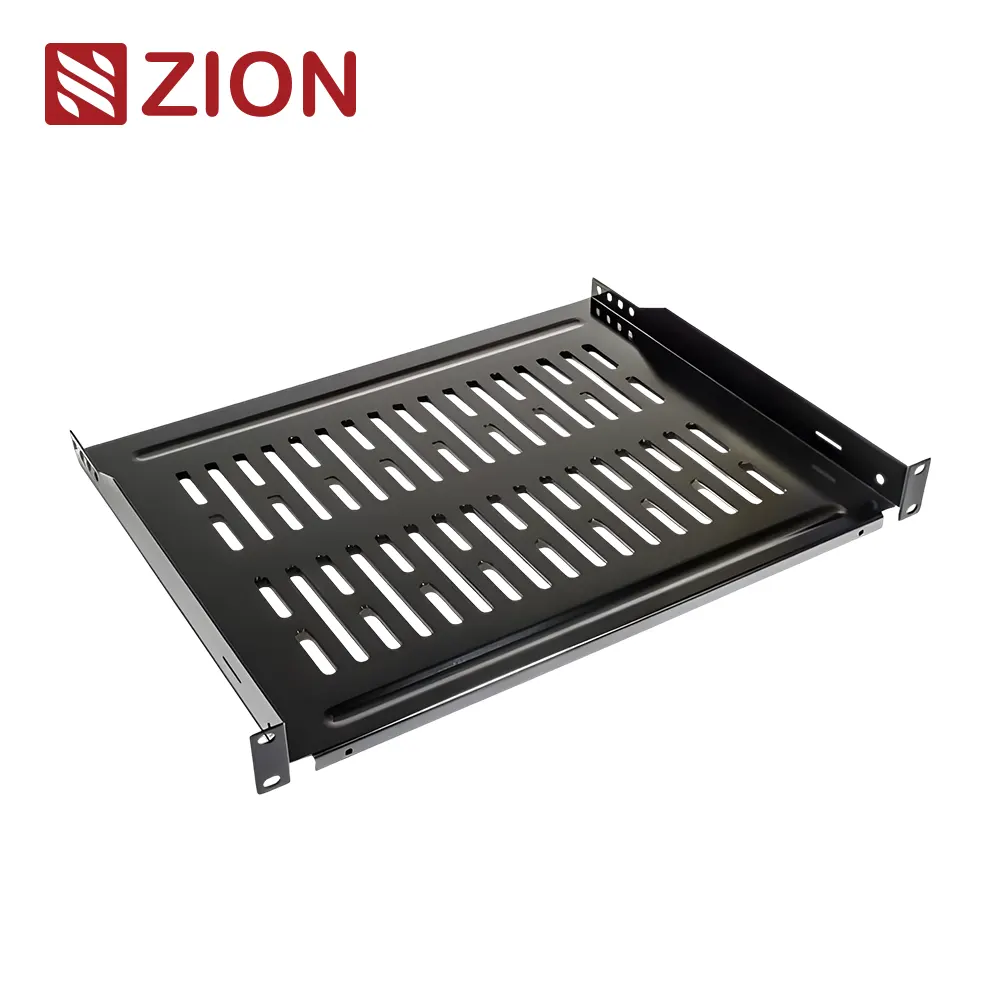

Shief For Server Rack Cabinet

Cantilever Shelf Without Holes

■ Used for 19-inch network cabinet and rack.
Parameter Cantilever Shelf Without Holes
Material: Cable length:
SPCC cold rolled steel 72455■■ : RAL7035/RAL9004
Main Part
Model No. Description Input (V)
7245502 2U-10″ DP 22Kg.[48Lb]
7245503 2U-16″ DP 22Kg.[48Lb]

Double Sided Shelf (2U)

■ Used for 19”open rack, 2U height.
Parameter Double Sided Shelf 2U
Material: Cable length:
SPCC cold rolled steel 72455■■ : RAL7035/RAL9004
Main Part
Model No. Description Input (V)
7245504 2U-19″ DP 50Kg.[110Lb]

Fixed Shelf

■ Only for ZION COMMUNICATION cabinet, install from side.
Parameter Fixed Shelf
Static load capacity:
90Kg [198Lb]
Material: Cable length:
SPCC cold rolled steel 72455■■ : RAL7035/RAL9004
Main Part
Model No. Shelf size MM Use
Width Depth
7245505 485 300 450MM wall box
7245506 485 450 600MM wall box
7245507 485 350 600MM cabinet
7245508 485 550 800MM cabinet
7245509 485 620 900MM wall box
7245510 485 720 1000MM wall box

Cantilever Shelf With Holes

■ Used for 19-inch network cabinet and rack.
Parameter Cantilever Shelf With Holes
Material: Cable length:
SPCC cold rolled steel 72455■■ : RAL7035/RAL9004
Main Part
Model No. Description Capacity
7245511 1U-6″ DP 5Kg.[11Lb]
7245512 1U-10″ DP 10Kg.[22Lb]
7245513 2U-12″ DP 22Kg.[48Lb]
7245514 2U-14″ DP 22Kg.[48Lb]
7245515 2U-16″ DP 22Kg.[48Lb]
7245516 2U-18″ DP 22Kg.[48Lb]
7245517 3U-16″ DP 36.3Kg.[80Lb]
7245518 3U-18″ DP 36.3Kg.[80Lb]

Keyboard

■ Used for 19 inch network cabinet.
■ Keyboard width is no more than 400MM.
■ Sliding shelf could elongate to 260MM.
Parameter Keyboard
Material: Cable length:
SPCC cold rolled steel 72455■■ : RAL7035/RAL9004
Main Part
Model No. Description Capacity
7245519  type 1 600~800MM cabinet
7245520  type 2 900~1100MM cabinet

Sliding Shelf (1U)

■ Used for 19-inch network cabinet.
Parameter Sliding Shelf 1U
Static load capacity:
30Kg [66Lb]
Material: Cable length:
SPCC cold rolled steel 72455■■ : RAL7035/RAL9004
Main Part
Model No. Description Shelf size MM Use
Depth Depth
7245522 350 type 440 350 600~800MM cabinet
7245523 550 type 440 550 900~1100MM cabinet
