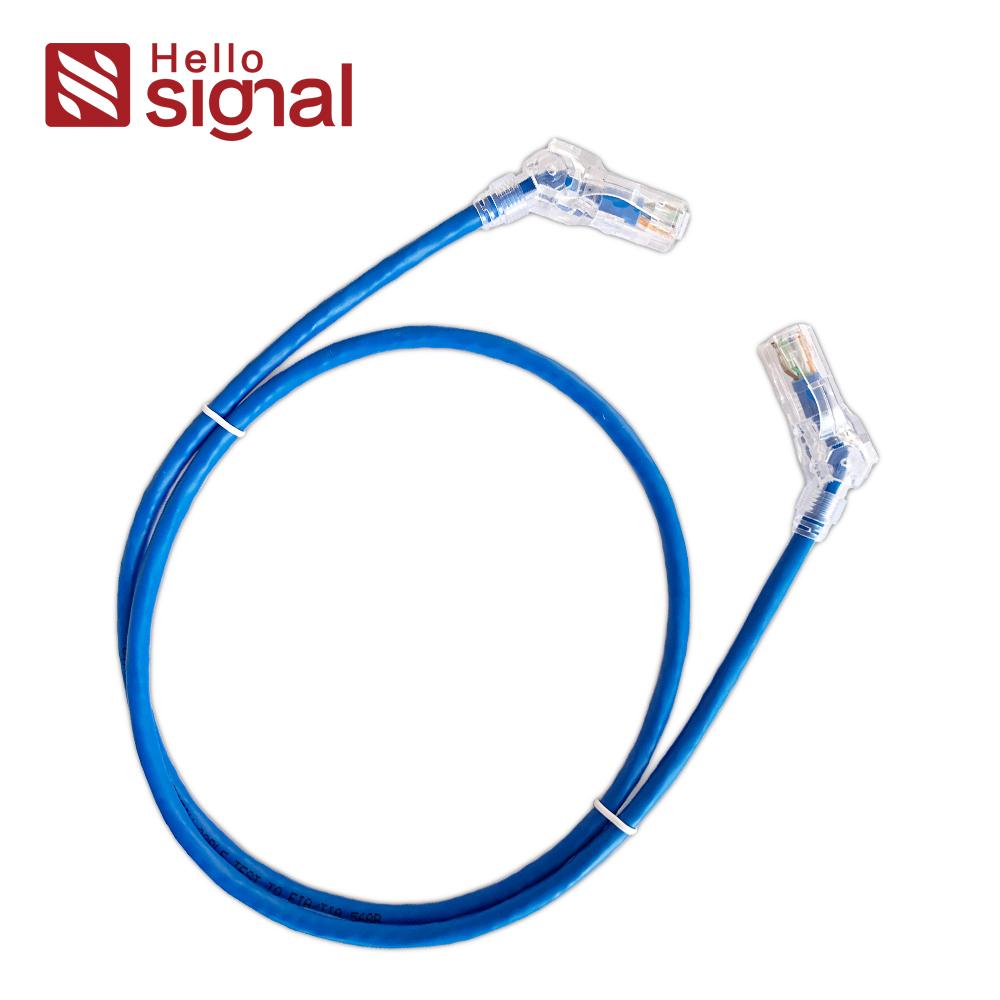

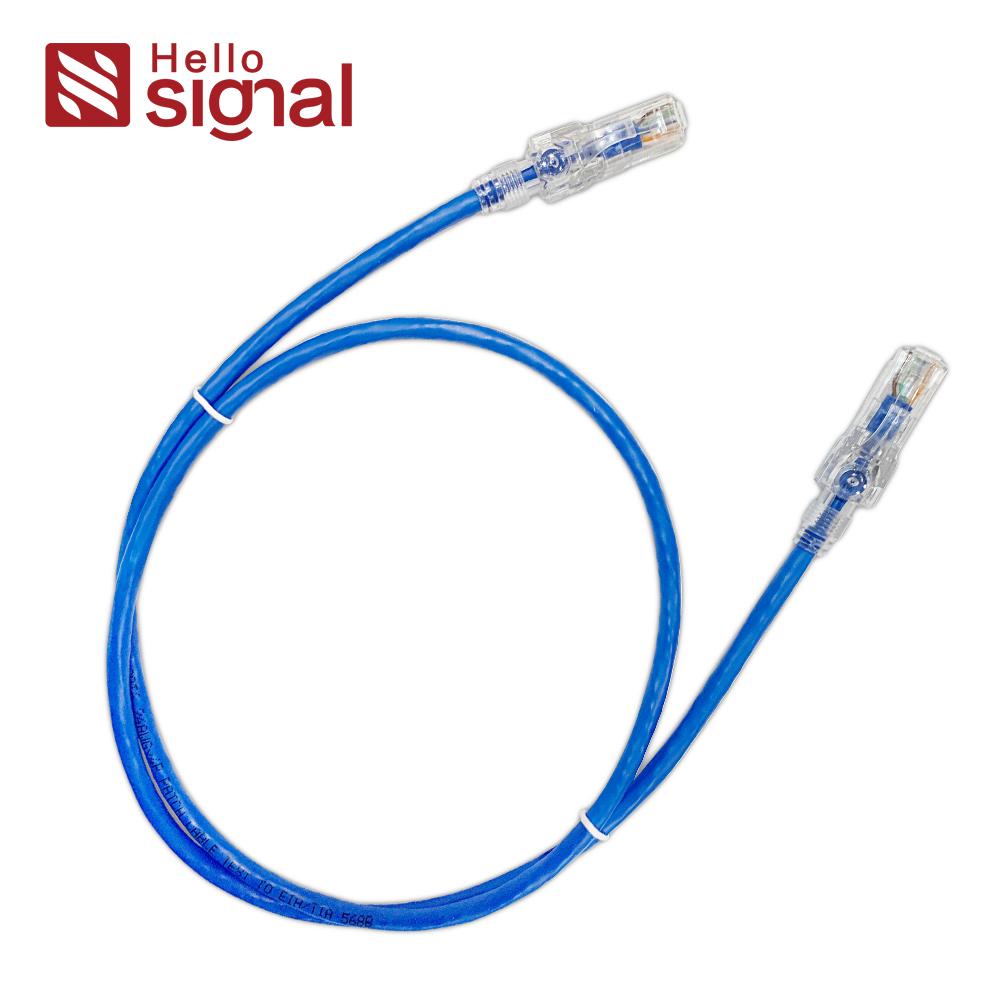

360° UTP CAT6 Patch Cord 360 degree stereo rotation CAT 6 UTP Patch Cord

Specifications:
Conductor: Stranded bare copper
Pairs:4 Pairs
Insulation: HDPE
Cross: Crossweb
Out Jacket: LSZH OR PVC
Frequency Range: 1 – 250 Mhz
Impedance: 100Ω
Max.Resistance Unbalance: 0.02
Current Rating : 1.5A
Voltage: 72 VDC Max.
Operating Temp.: Min. -20 °C, Max. +60 °C

360 degree UTP CAT6 Patch Cord

Application



360 Degree Stereo Rotation (Patent model)



Application

True 360-degree stereo rotation Category 6 cabling systems are playing a significant role in data centers and mission-critical environments upgrading to 10GBASE-T. ZION Communication CAT6 U/UTP Patch Cords conform to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 6. The patch cords are 100% tested per Cat.6 Channel up to 250 MHz. Designed for high-speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T, HDBase-T A & B and ATM, CATV, computers, hubs, switches, routers, DSL/cable modems and patch panel in Gigabit datacenter.



Key Features

●The 360-degree rotatable elbow allows for free angle adjustment, eliminating concerns about directional issues. Its versatility in adapting to various scenarios ensures neat and tidy wiring as per your preference.

●Featuring a patented three-dimensional elbow design that rotates 360 degrees, it effortlessly accommodates both regular 24AWG patch cords and ultra-fine 32AWG wires, ensuring durability and full coverage.

●This groundbreaking 360-degree three-dimensional elbow design guarantees ultra-high-speed transmission without affecting RL/Insertion Loss/Propagation Delay/Delay Skew/NEXT/PSNEXT/ELNEXT/PSELNEXT, delivering a stable network connection.

●The thickened gold-plated contacts, along with a gold-plated three-hole chip, offer excellent oxidation resistance and durability during plugging and unplugging. This snug fit with the network cable enhances conductivity, resulting in a faster and more stable network speed.

●Enjoy a stable internet connection that refuses to drop lines or encounter frame jams, ensuring uninterrupted gaming and seamless movie streaming.

●This type is suitable for use with computers, routers, switches, TVs, set-top boxes, and various other devices.

Picture diagram A A



Picture diagram A B



CAT6 Patch cord with 360 Degree Stereo Rotation



Specification (Data of the cable & RJ45 connector)

Patch Cable

Conductor: Stranded bare copper
Pairs: 4 Pairs Specification
Insulation: HDPE
Insulation Color
Per
TIA/EIA 568-B
Orange, White/White-Orange
Blue, White/White-Blue
Green, White/White-Green
Brown, White/White-Brown
Cross Crossweb
Out Jacket: LSZH OR PVC
Frequency Range 1 – 250 Mhz
Impedance 100Ω
Max.Resistance
Unbalance
0.02
Current Rating 1.5A
Voltage 72 VDC Max.
Operating Temp. Min. -20 °C, Max. +60 °C



Connector

Description Material Type
Plug Polycarbonate  (360 degree stereo rotation) RJ45
Boot LSZH OR PVC Snagless
Front Connection Phosphor Bronze with 50u inch Gold over Nickel Plating Blades
Durability 750 Mating Cycles min.

Characteristics

VERSION CLASS MAX. OPERATING FREQUENCY SHIELDING TYPE PLUG CONNECTOR USED FOR NOTE NORMAL
Cat 6 G (I) 250MHz U/UTP RJ45 10GBase-T
(Lengths of 55m)
Faster server interconnection.
Connections in data centres.
ISO/IEC TR
11801-99-1

Patch Cord Length



Ordering Information

360-degree stereo rotation CAT 6 UTP 24AWG Patch Cord
Conductor: 7/0.2mm Copper;  Cable OD:6.0±0.2mm; Max Length based on 10Gbps: up to 55meter.
Zion Code Description
360U61CO05MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 0.5m
360U61CO1MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 1m
360U61CO2MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 2m
360U61CO3MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 3m
360U61CO5MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 5m
360U61CO7MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 7m
360U61CO10MBL 360 degree stereo rotation CAT6 UTP 24AWG RJ45 Patch Cord,LSZH,Blue, 10m



360-degree stereo rotation CAT 6 UTP 28AWG Patch Cord

Conductor: 7/0.127mm Copper;  Cable OD:5.0±0.2mm;
Zion Code Description
360U63CO05MBL 360 degree stereo rotation CAT6 UTP 28AWG RJ45 Patch Cord,LSZH,Blue, 0.5m
360U63CO1MBL 360 degree stereo rotation CAT6 UTP 28AWG RJ45 Patch Cord,LSZH,Blue, 1m
360U63CO2MBL 360 degree stereo rotation CAT6 UTP 28AWG RJ45 Patch Cord,LSZH,Blue, 2m
360U63CO3MBL 360 degree stereo rotation CAT6 UTP 28AWG RJ45 Patch Cord,LSZH,Blue, 3m
360U63CO5MBL 360 degree stereo rotation CAT6 UTP 28AWG RJ45 Patch Cord,LSZH,Blue, 5m
360U63CO7MBL 360 degree stereo rotation CAT6 UTP 28AWG RJ45 Patch Cord,LSZH,Blue, 7m



PACKING



OEM/ODM service for you
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo on Plug & Boot / Printing on Cable / Label/PE bag/Carton design
• Different Color & Different Lengths Available / Different Molding/Strain Relief
