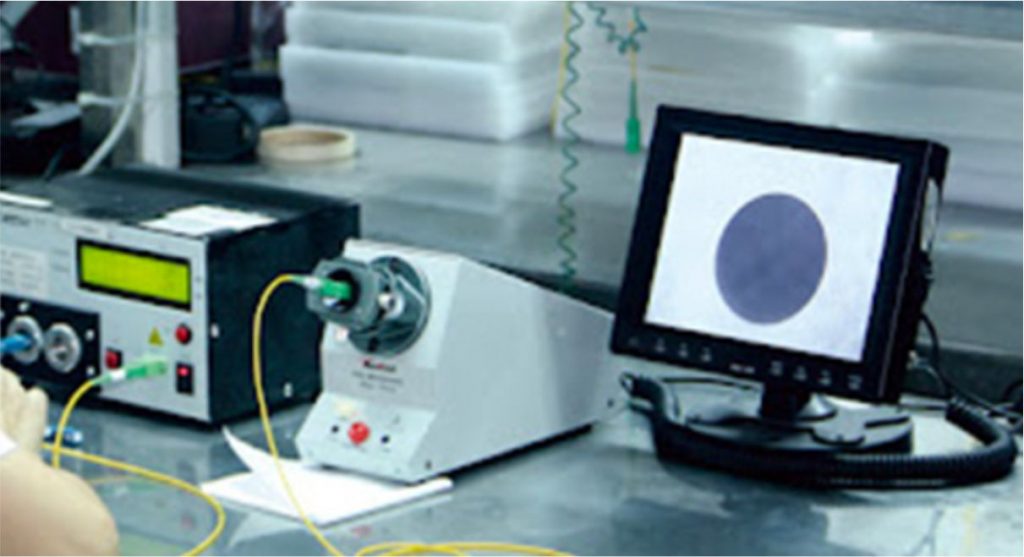

1.Visual Inspection&Geometry Test
Clean the ground joint and put it on a 400x microscope to check if the product is qualified.
Note: There should not be any defects or scratches in the A zone during end face inspection. Zone C Scratches (0~25um)
Zone B allows scratches ≤ 2um ≤ 2 places, pits ≤ 5 Zone B um1 place.
Zone C has no requirements.
2.IL&RL Test
The assembly products are tested with the JGR tester, mainly testing the loss of insertion damage.
3.Polarity Test
Perform polarity tests at the same time.
MPO/MTP Patch Cord
-Description
- The MPO/MTP connector is a type of fiber connecter. MPO (Multi-Fiber Push On) is a multi-core fiber connecter type. The MPO/MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
- MPO/MTP connector types are distinguished according to the IEC 61754-7(EIA/TIA-604-5) regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
- MPO/MTP 3.0mm LSZH Fiber Patch Cord. MPO/MTP Fiber Patch Cord is terminated with MPO/MTP connector on both ends. MPO Fiber Patch Cord connect MPO/MTP modules together as a permanent link. The MPO/MTP Fiber Patch Cord are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO/MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO/MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the crossconnect side of the patch panel.
- MPO/MTP Fiber Patch Cord is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.
-Optical Specifications
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| nsertion loss (MPO/MTP) (IEC 61300-3-34) | Standard loss：≤0.75dB(max), ≤0.50dB(Typical) Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) | Standard loss：≤0.6dB(max), ≤0.50(Typical) Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO/MTP) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dB typical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Plug -in times | MPO≤ 500;MTP>600 | |
| Tensile strength | >70N | |
| Operating Temperature (℃） | ·-40 to + 85°C | |
-Connectors’ Industrial Standard
| Connector | Reference | Housing Details |
| MPO/MTP Singlemode | IEC 61754-7 EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MPO/MTP) SM APC: Yellow connectors+black boot (Super low loss MPO/MTP) |
| MPO/MTP Multimode | IEC 61754-7 EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO/MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO/MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO/MTP) |
-Features
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
-Application
All of OMC’s MPO/MTP Connectors are from Senko/Nissin/Sumitomo. MPO/MTP Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas.
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.

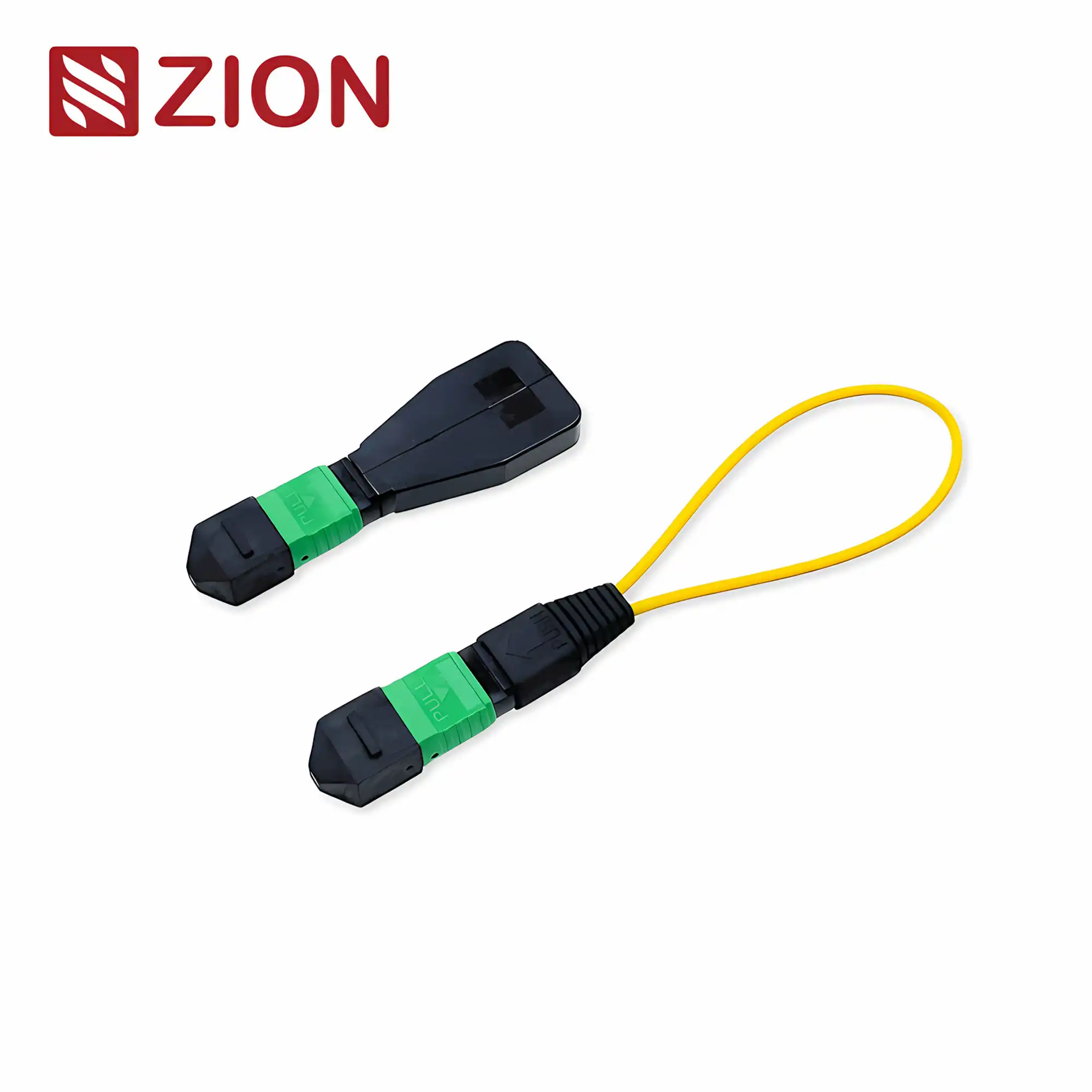

MPO/MTP Fiber Optic Loopback
-Description
The MPO/MTP loop contains the MPO/MTP back ring jumping line in the LOOPBACK, and puts both ends of the fiber into an MPO/MTP connector to achieve the light path in the same connector. The launch capacity and receiving sensitivity of the device, especially in 40/100G network communication, can locate various potential phenomena by returning signals to achieve effective testing and evaluation of a single component or interface on the fiber network.
There are many configurations of optical fiber circuit, which can accommodate 8 -core, 12 -core and 24 -core MPO/MTP connector and several fiber fiber configurations to adapt to the port in the test.8F MPO/MTP Fiber Loopback Module allows verification and testing of transceivers featuring MPO/MTP interface – 40GBASE-SR4/CSR4 QSFP+ devices. 12F MPO/MTP Fiber Loopback Module allows verification and testing of transceivers featuring MPO/MTP interface – 40GBASESR4 QSFP+ or 100GBASE-SR4 devices. 24F MPO/MTP Fiber Loopback Module allows verification and testing of transceivers featuring MPO/MTP interface – 100GBASESR10 CXP/CFP devices.
MPO/MTP Loopback modules provides a looped signal to test the transmit and receiving functions. It used widely within testing environment especially within parallel optics 40 and 100G networks. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.MPO/MTP Fiber Patch Cord is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.
OMC offers a line of MPO/MTP fiber optic loopback assemblies for burn-in and testing of MPO/MTP network components and systems. These MPO/MTP Loopback Assemblies are used to effectively test transmitter capability and receiver sensitivity of network equipment, particularly for telecom and datacom requirements. They are packaged in a compact housing for the highest density available for these applications.
-Optical Specifications
| Item | Parameter |
| Fiber Type | Singlemode |
| Fiber Diameter | 9/125um |
| Insertion loss | SM(G657A1)＜1.0dB |
| Return loss | SM＞50dB |
| Insert-pull Test | MPO≤ 500;MTP>600, IL＜0.5dB |
| Operation Temperature | -40℃~ +80℃ |
-Connectors’ Industrial Standard
| Connector | Reference | Housing Details |
| MPO/MTP Singlemode | IEC 61754-7 EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MPO/MTP) SM APC: Yellow connectors+black boot (Super low loss MPO/MTP) |
| MPO/MTP Multimode | IEC 61754-7 EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO/MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO/MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO/MTP) |
-Fiber Optic Loopback Testing
Typically, a loopback test is a test in which a signal is sent from a communication device and looped back to the device as a way to determine whether it is functioning well or as a way to troubleshoot a defective node in the network. As for fiber optic loopback testing, optical loopbacks are used to verify the operational reliability of the device. Using fiber optic loopback cable or fiber optic loopback module for data transmission, the signal emitted by the device is looped from the transmit (Tx) end of an active component back to the receive (Rx) end of the same component.
-Application

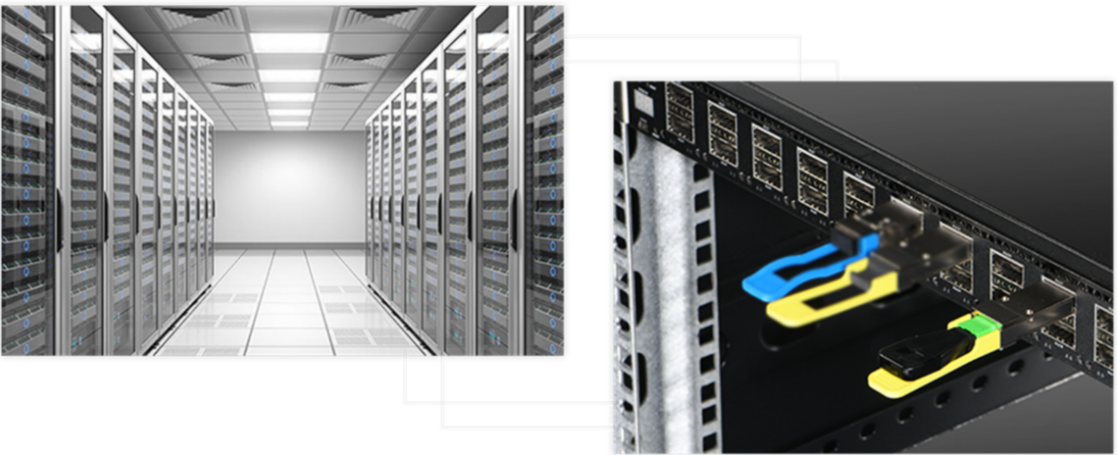

When it comes to practical application, fiber optic loopback test is often employed for checking fiber optic transceivers. Since transceiver has two ports for receiving and transmitting the light signal, it is necessary to test the ports to see whether they are still under operation. Thus, fiber optic loopback test is the most convenient way for transceiver maintenance. The testing process is by routing the laser signal from the transmitter port back to the receiver port. Then the transmitted pattern is compared with the received pattern to make sure they are identical and have no error.
- Collocated with 40G or 100G MPO/MTP interface transceivers
- Loopback Module can be used for testing the transmission capability and receiver sensitivity of fiber optic network equipment.
MPO/MTP (Male) -LC Fan-out 0.9mm
-Description
The MPO/MTP connector is a type of fiber connecter. MPO/MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MPO/MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
MPO/MTP connector types are distinguished according to the IEC 61754-7(EIA/TIA-604-5) regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
SM 8F MPO/MTP- LC/SC/FC/ST Fanout 0.9mm cable are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.OM3/OM4 8F MPO/MTP- LC/SC/FC/ST Fanout 0.9mm cable are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.
MPO/MTP (male)-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable are designed for MPO/MTP-LC LGX module cassettes are terminated with MPO/MTP and LC/SC/FC/ST connector on each end. It’s specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
-Optical Specifications
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| nsertion loss (MPO) (IEC 61300-3-34) | Standard loss：≤0.75dB(max), ≤0.50dB(Typical) Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) | Standard loss：≤0.6dB(max), ≤0.50(Typical) Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Insert-pull Test | MPO≤ 500;MTP>600, IL＜0.5dB | |
| Operating Temperature (℃） | ·-40 to + 85°C | |
-Connectors’ Industrial Standard
| Connector | Reference | Housing Details |
| MPO/MTP Singlemode | IEC 61754-7 EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MPO/MTP) SM APC: Yellow connectors+black boot (Super low loss MPO/MTP) |
| MPO/MTP Multimode | IEC 61754-7 EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO/MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO/MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO/MTP) |
-Features
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
-Application
All of OMC’s MPO/MTP Connectors are from Senko/Nissin/Sumitomo. MPO/MTP- LC/SC/FC/ST Fanout 0.9mm cable is a kind of high density cable assemblies which is generally use in three areas.
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
MPO/MTP-LC Straight Harness Cables 2.0mm
-Description
The MPO/MTP connector is a type of fiber connecter. MPO (Multi-Fiber Push On) is a multi-core fiber connecter type. The MPO/MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
MPO/MTP connector types are distinguished according to the IEC 61754-7(EIA/TIA-604-5) regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
SM MPO/MTP- LC/SC/FC/ST Straight harness Cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.
-Optical Specifications
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| nsertion loss (MPO) (IEC 61300-3-34) | Standard loss：≤0.75dB(max), ≤0.50dB(Typical) Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) | Standard loss：≤0.6dB(max), ≤0.50(Typical) Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dB typical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Insert-pull Test | MPO≤ 500;MTP>600, IL＜0.5dB | |
| Tensile strength | >70N | |
| Operating Temperature (℃） | ·-40 to + 85°C | |
-Connectors’ Industrial Standard
| Connector | Reference | Housing Details |
| MPO/MTP Singlemode | IEC 61754-7 EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MPO/MTP) SM APC: Yellow connectors+black boot (Super low loss MPO/MTP) |
| MPO/MTP Multimode | IEC 61754-7 EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO/MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO/MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO/MTP) |
-Available for
G657A1 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
G657A2/B2 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
G657B3 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM1 62.5/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM2 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM3 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM4 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
OM5 50/125 MPO-LC, MPO-SC，MPO-FC，MPO-SC，MPO-ST，MPO-E2000
-Features
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
-The Merits of MPO/MTP Patch Cable/trunk Cable Generally Include
- High quality—MPO/MTP Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
- Decreasing cable volume—MPO/MTP Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers
- Time saving—With the special plug and play design, MPO/MTP Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
-Application
12F MTP- LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity data center. It is optimized for 10/40/100G high-density data center applications.
All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas.
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
MPO/MTP TRUNK CABLE
-Description
The MPO/MTP connector is a type of fiber connecter. MPO (Multi-Fiber Push On) is a multi-core fiber connecter type. The MPO/MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+.
MPO/MTP connector types are distinguished according to the IEC 61754-7/EIA/TIA-604-5 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC).
24F-144F MPO/MTP TRUNK CABLE is terminated with MPO/MTP connector on both ends. MPO/MTP Patch cable/trunk cables connect MPO/MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO/MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO/MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.
-Optical Specifications
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| nsertion loss (MPO) (IEC 61300-3-34) | Standard loss：≤0.75dB(max), ≤0.50dB(Typical) Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) | Standard loss：≤0.6dB(max), ≤0.50(Typical) Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Insert-pull Test | MPO≤ 500;MTP>600, IL＜0.5dB | |
| Operating Temperature (℃） | ·-40 to + 85°C | |
-Push Pull Tab For Senko MPO/MTP
-Connectors’ Industrial Standard
| Connector | Reference | Housing Details |
| MPO/MTP Singlemode | IEC 61754-7 EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MPO/MTP) SM APC: Yellow connectors+black boot (Super low loss MPO/MTP) |
| MPO/MTP Multimode | IEC 61754-7 EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO/MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO/MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO/MTP) |
-Products Materials-Cable
The cable for 24F-144F is a kind of 2.0mm/3.0mm multi-tubes Micro-fiber cable. Each Tube’s hold 12F. See Below.
-Features
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
-Application
All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas.
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
FHD MPO/MTP-LC Patch Panel
-Products Description
The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve.
MPO/MTP fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,3U,4U, we are manufacturer of MPO/MTP fiber optic patch panels and cassettes, MPO cable assemblies and components.
MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client’s end.
-Specification
Product Code | ZCUHD11F37HL1 |
Material | CRS Cold rolled steel |
Enclosure Type | 19″ Rack Mountable |
Installation | Standard EIA 19″ Rack |
Compliant | IEC 61754-7 TIA/EIA-568-C.3 |
Fiber Count | Max.144 Fibers |
Dimensions (HxWxD) | 482.6mmx455mmx44mm |
Application | Telecommunication |
Place of Origin | ZheJiang, China |
Brand | HELLOSIGNAL® OR OEM |
Delivery time | Normally 25 days after received the deposit. |
MOQ | 50pcs |
-Matching Cassettes Module and accessories
-Application
Ultra-High density Data center Cabling system and management .
Professional MPO/MTP cabling Solution
UHD Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building
backbones, data centers and enterprise applications.
Email us, Call us, Meeting online with us!
Tell us about your purchasing plans!
We specializing in designing, manufacturing communications infrastructure & equipment and providing customized services for our customers！
Email：sales@hello-signal.com
Give Us A Call：+86 15715730101
