FIBER OPTIC PATCH PANEL

What is a Fiber Optic Patch Panel?

● A fiber optic patch panel is used for patching fiber cable to the termination enclosure, such as fiber wall cabinets, rack mount
fiber cabinets, or rack mount fiber shelves. It is a good option for easy network deployment or moves, adds, and changes.

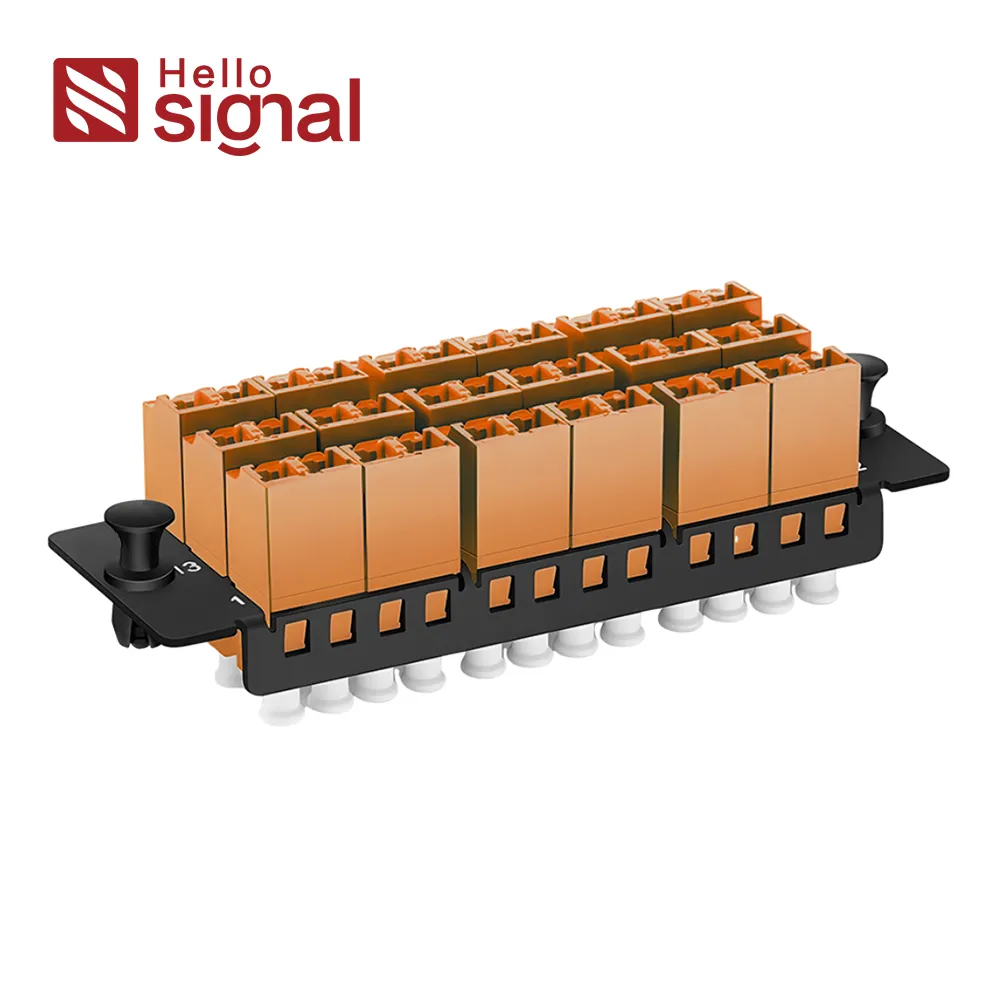

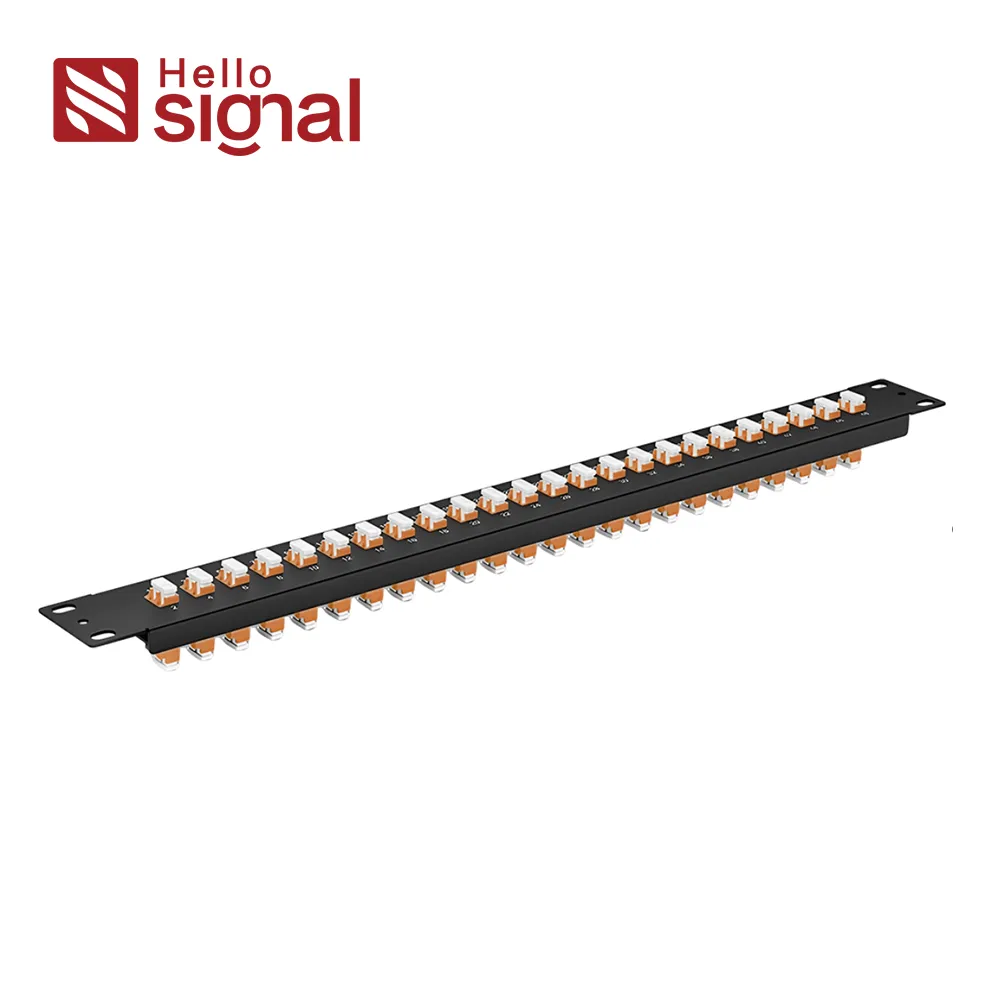

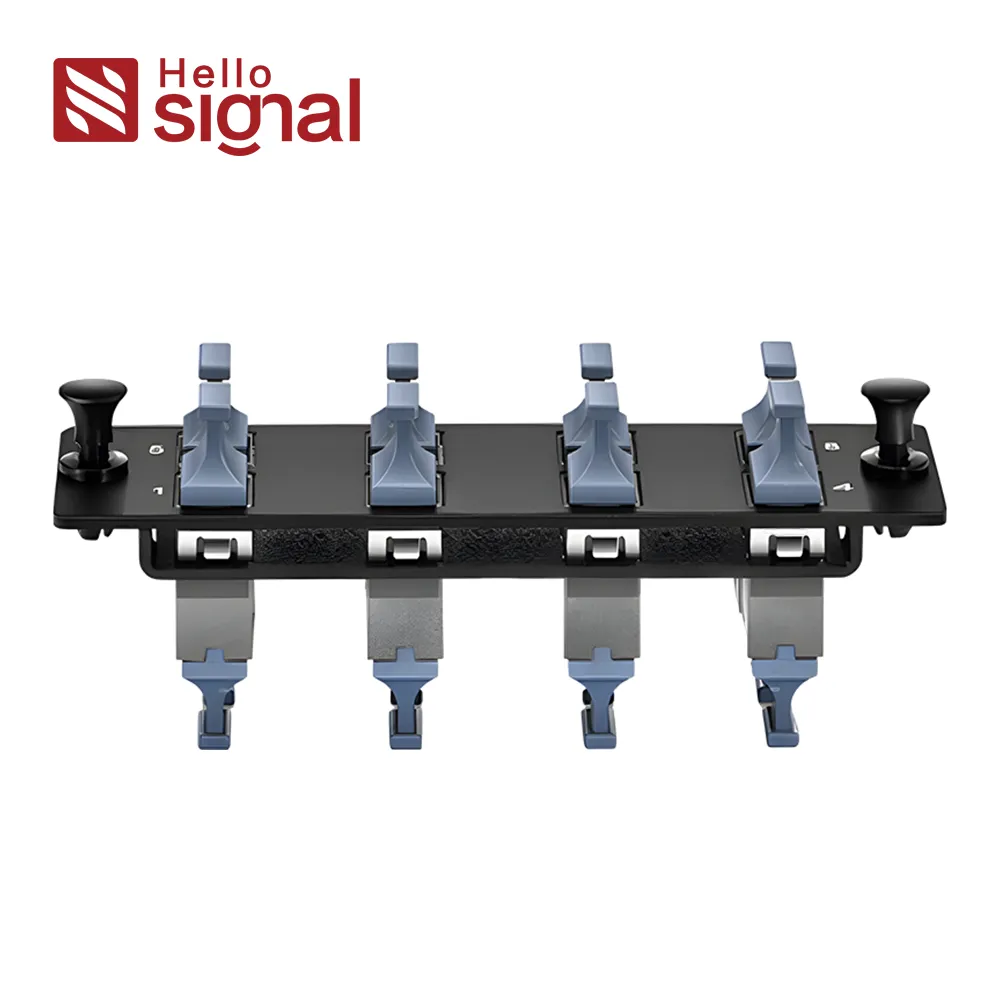

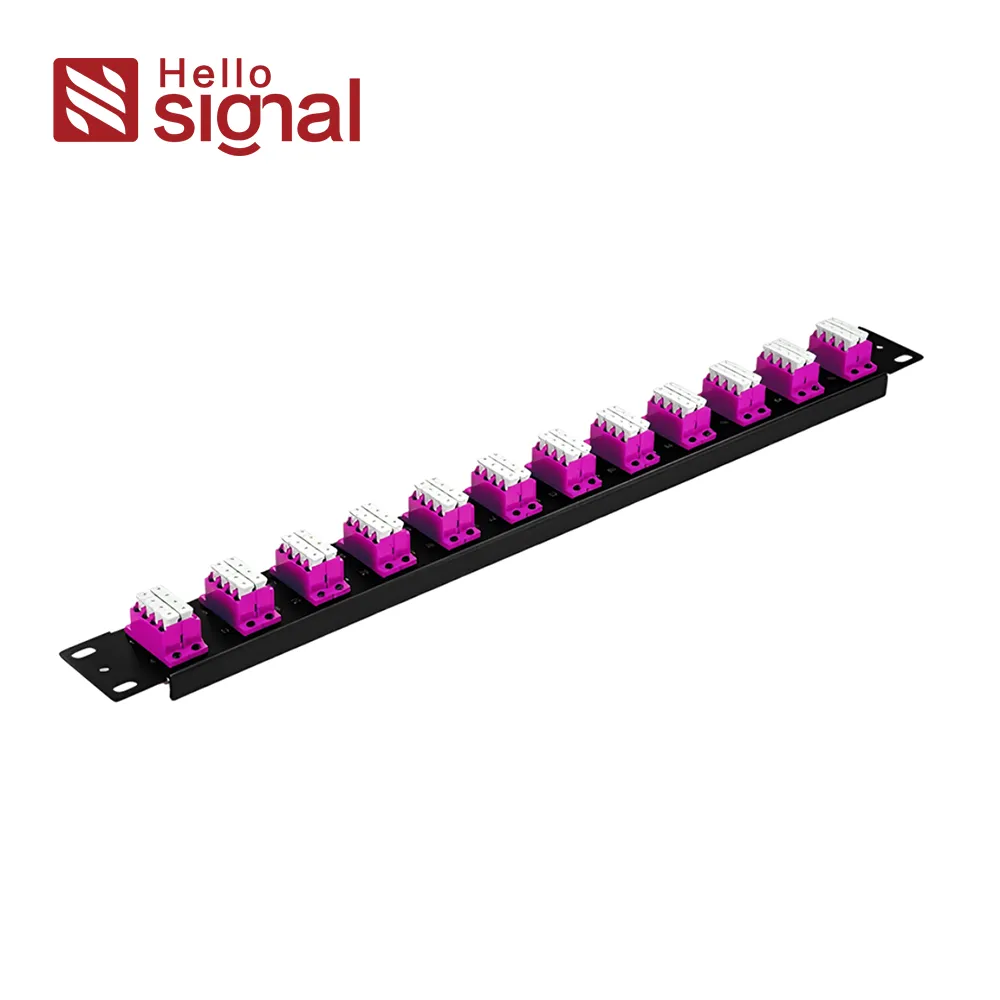

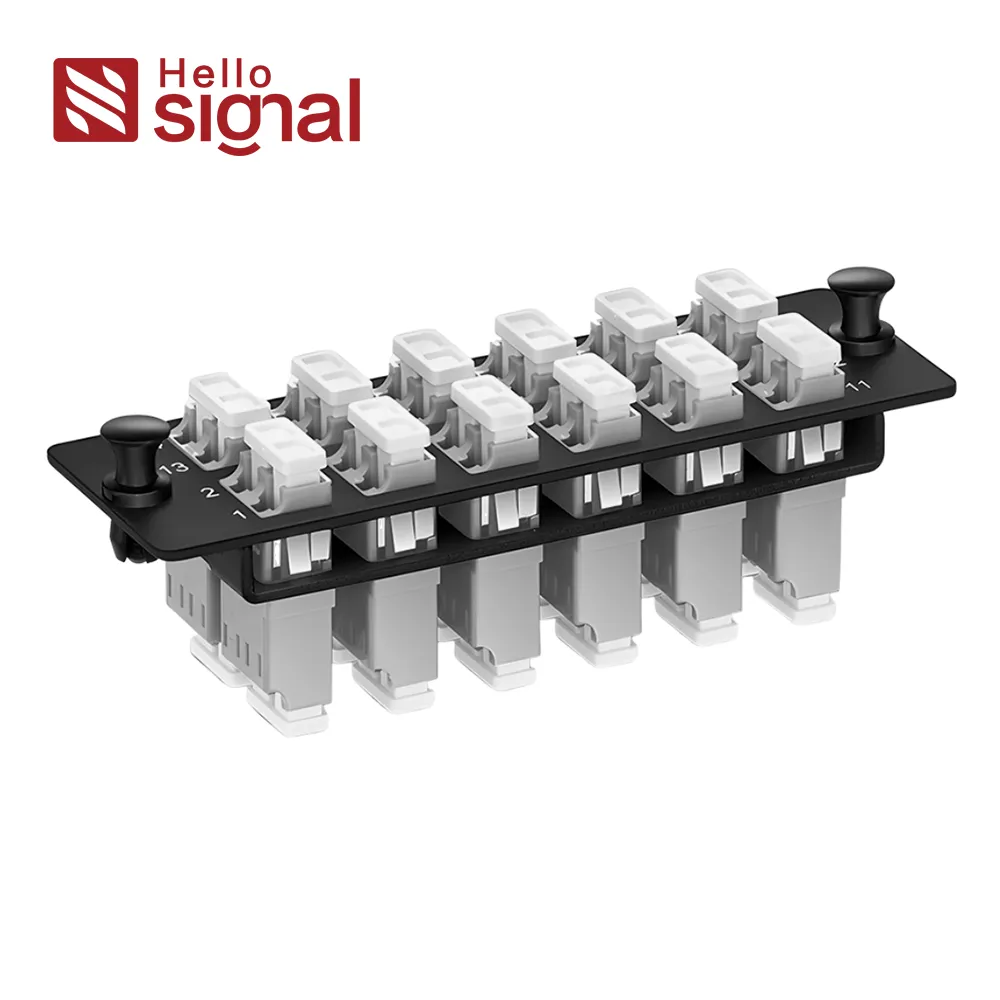

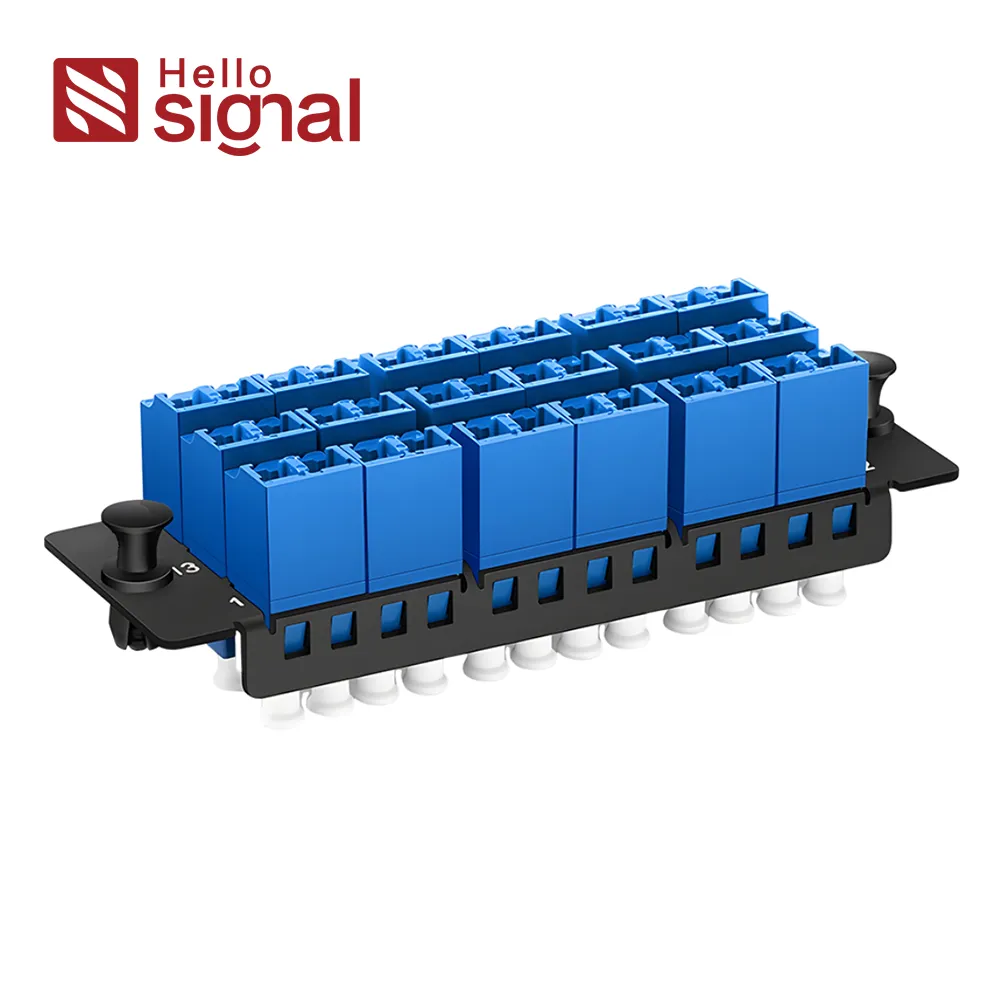

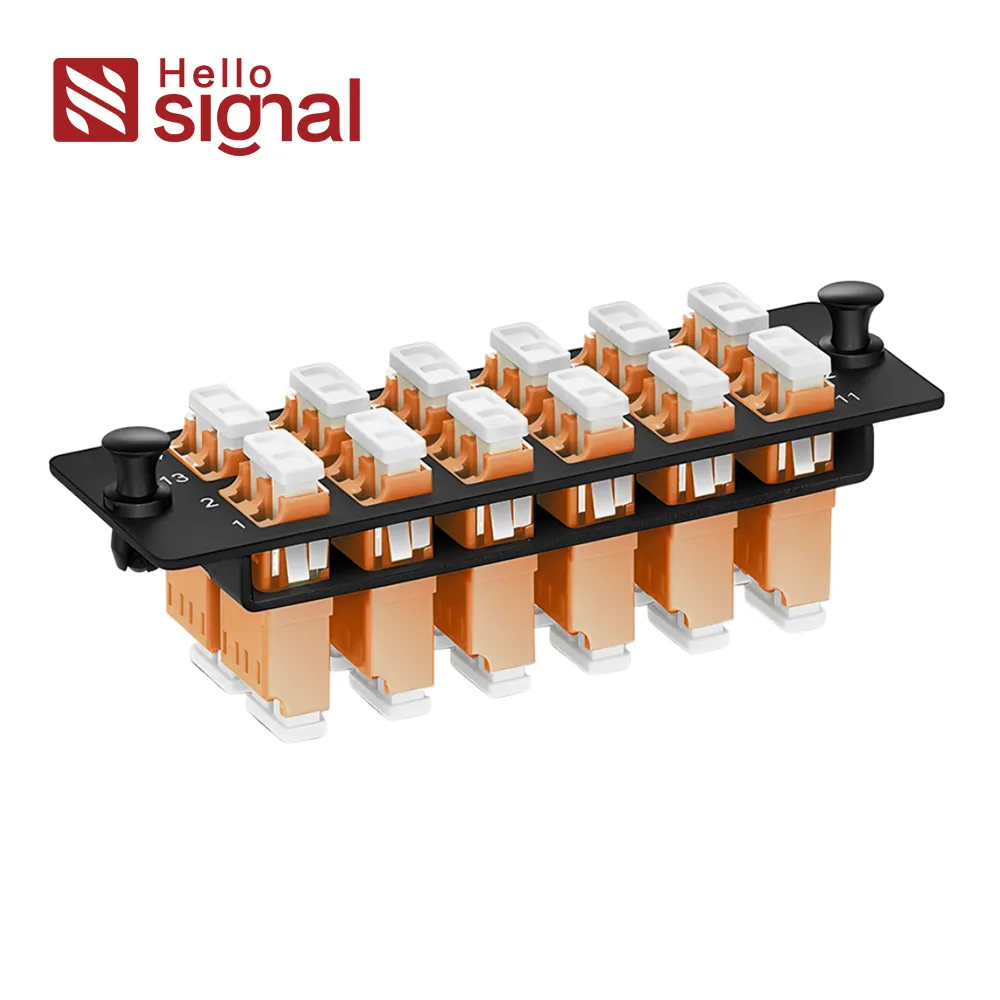

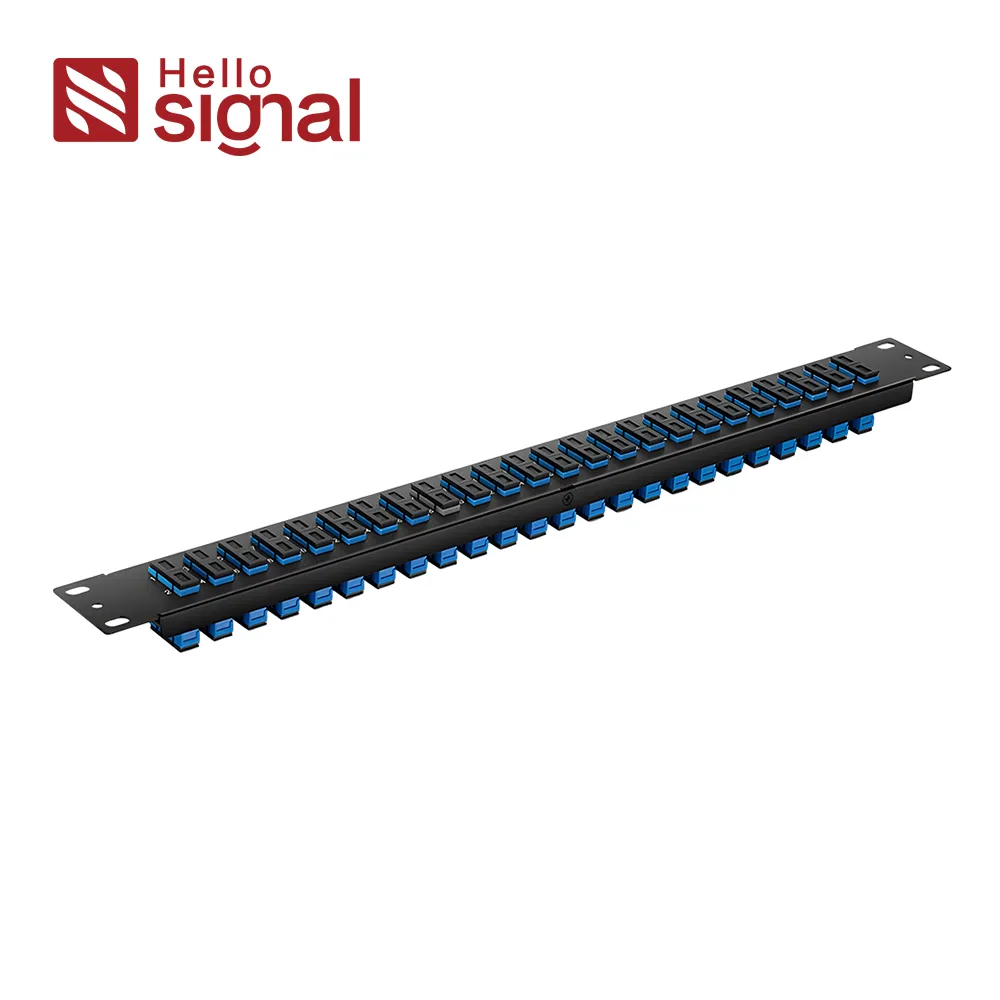

● Fiber patch panels can interconnect pre-terminated products. Also, the fiber adapter panel can realize the connection and
deployment of jumpers and pigtails between the equipment and the distribution area. The fiber patch panel is generally loaded in a

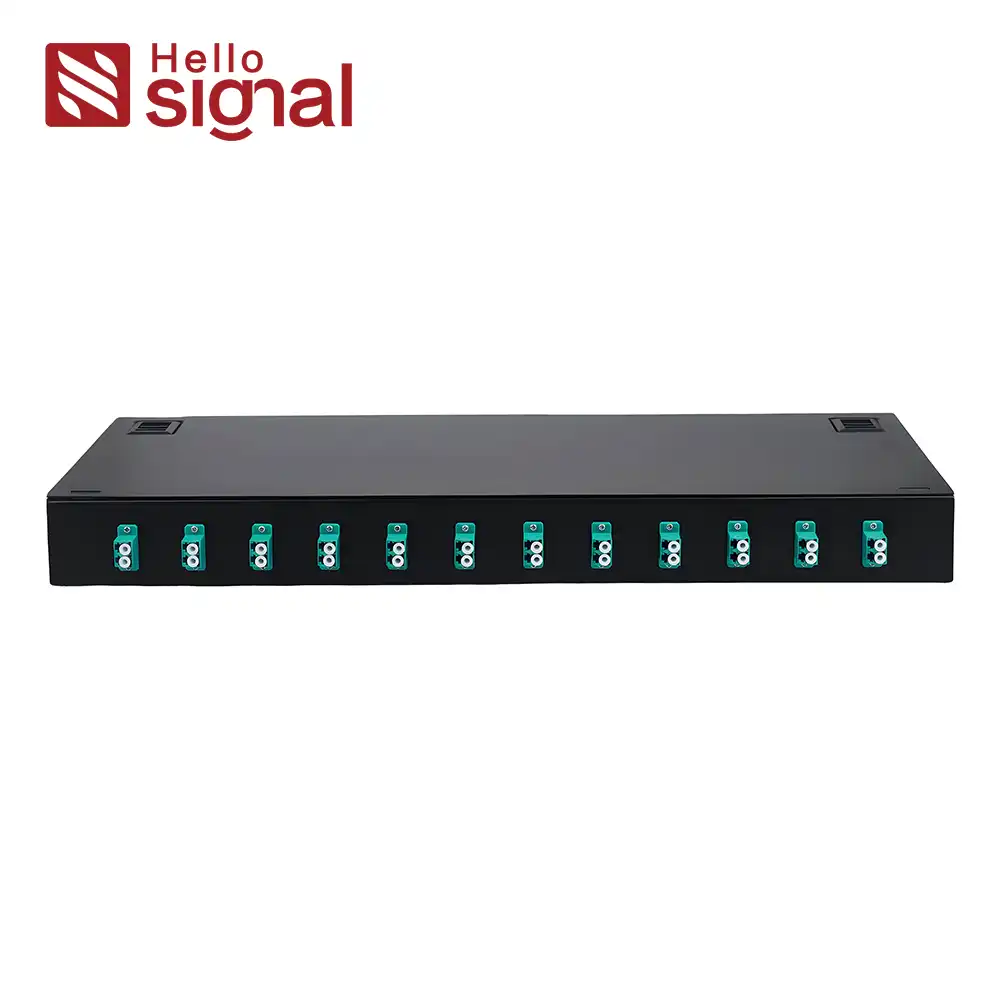

fiber patch panel enclosure. As shown below, four fiber patch panels are loaded in a 1U 19” rack mount enclosure.

Fiber Optic Patch Panel 1

In physical terms, it is usually a metal enclosure that houses adapter panels, fiber splicing trays, and space for excess fiber storage.

Fiber Patch Panel

Types of Fiber Optic Patch Panels

LC/SC/FC/ST/MTP/MPO Fiber Optic Patch Panel

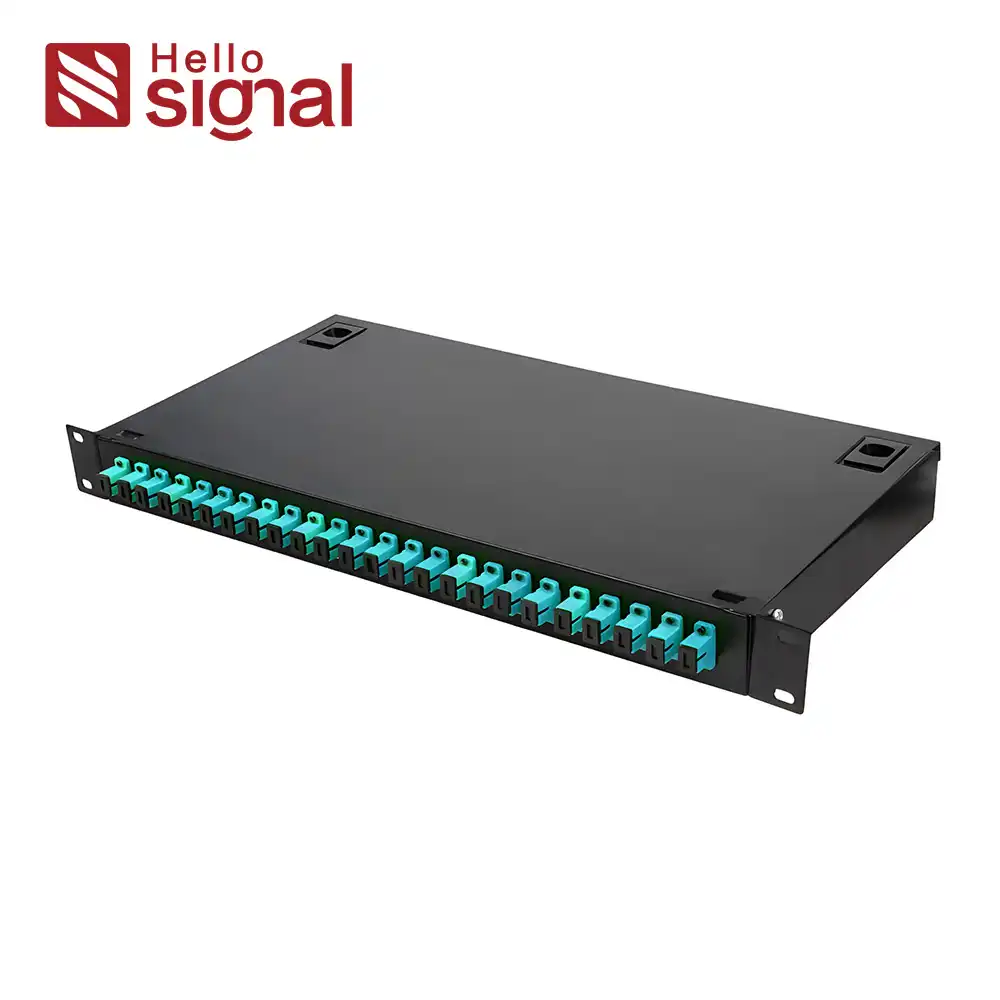

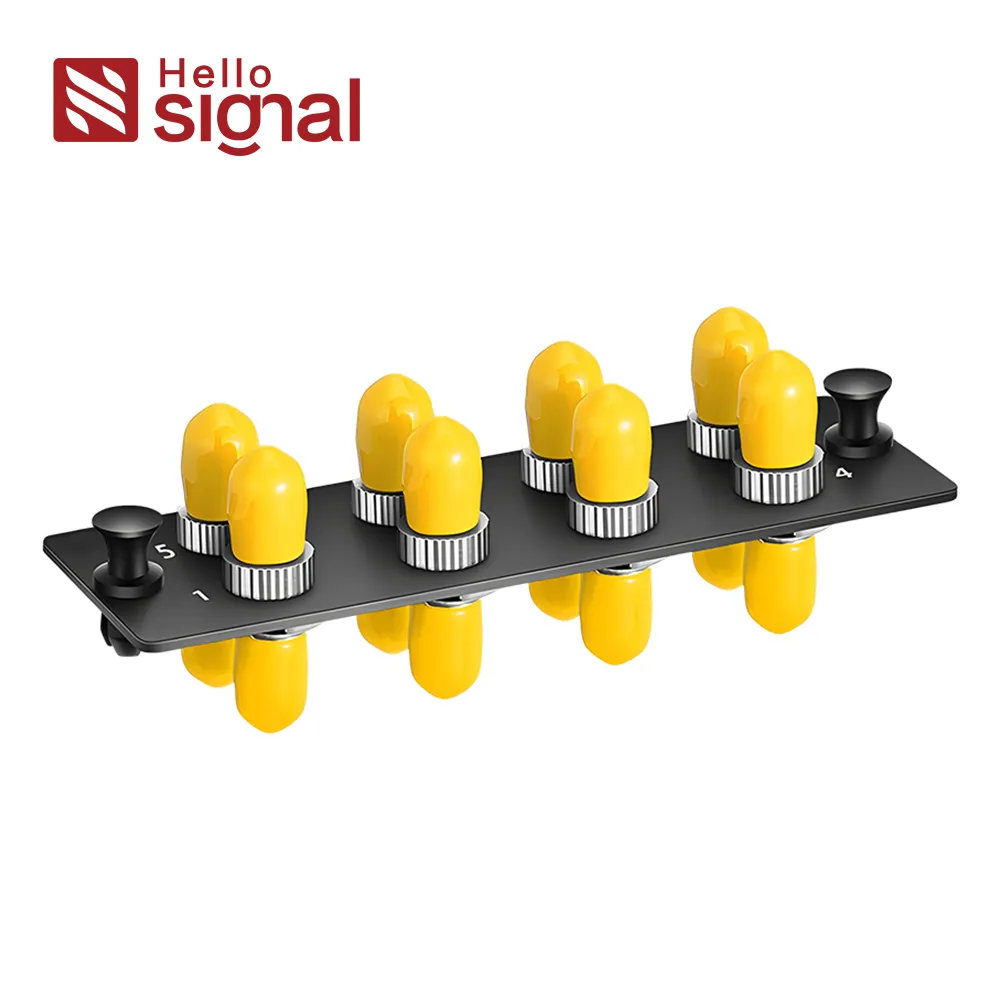

 ● There are various fiber patch panel connector types, including LC, SC, FC, ST, and MTP/MPO fiber patch panels. Fiber patch

panels with different connector types work with corresponding fiber optic cables. In data center cabling, the most popular
used are LC patch panels and MTP patch panels.

Fiber Patch Panel5 1

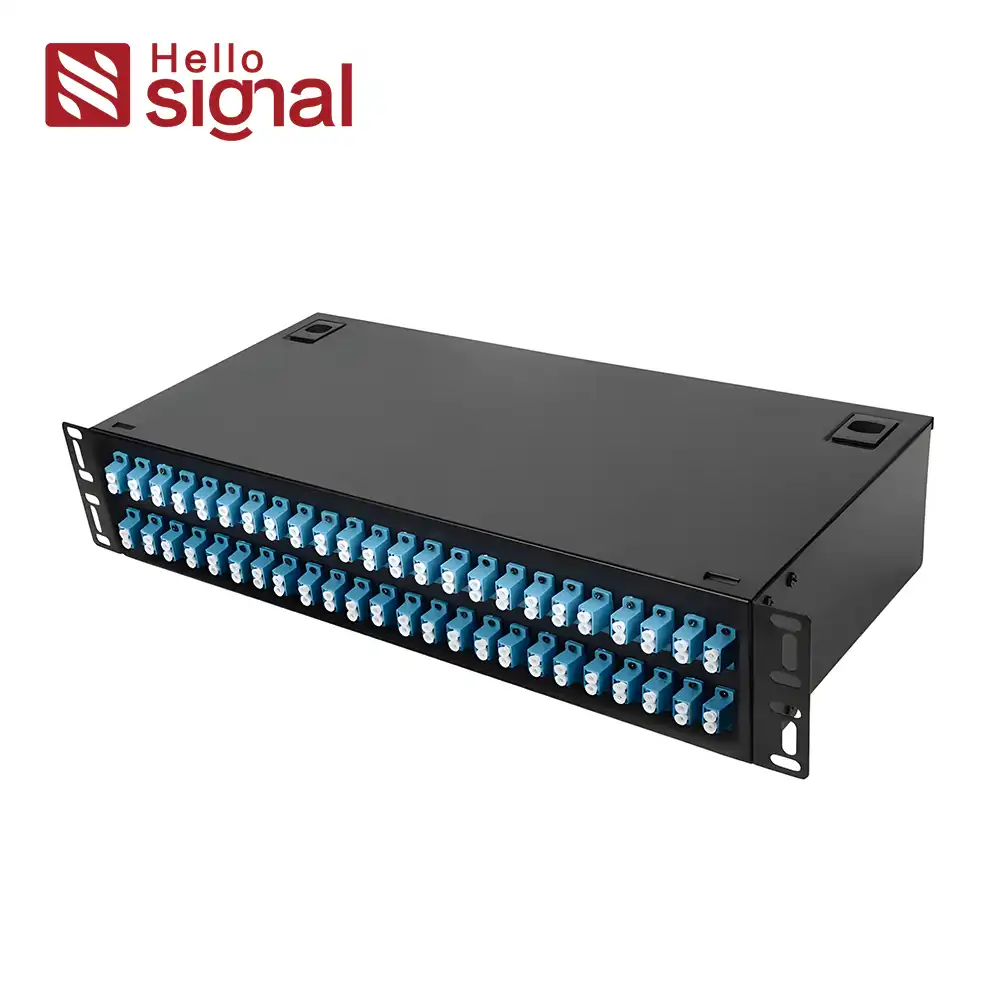

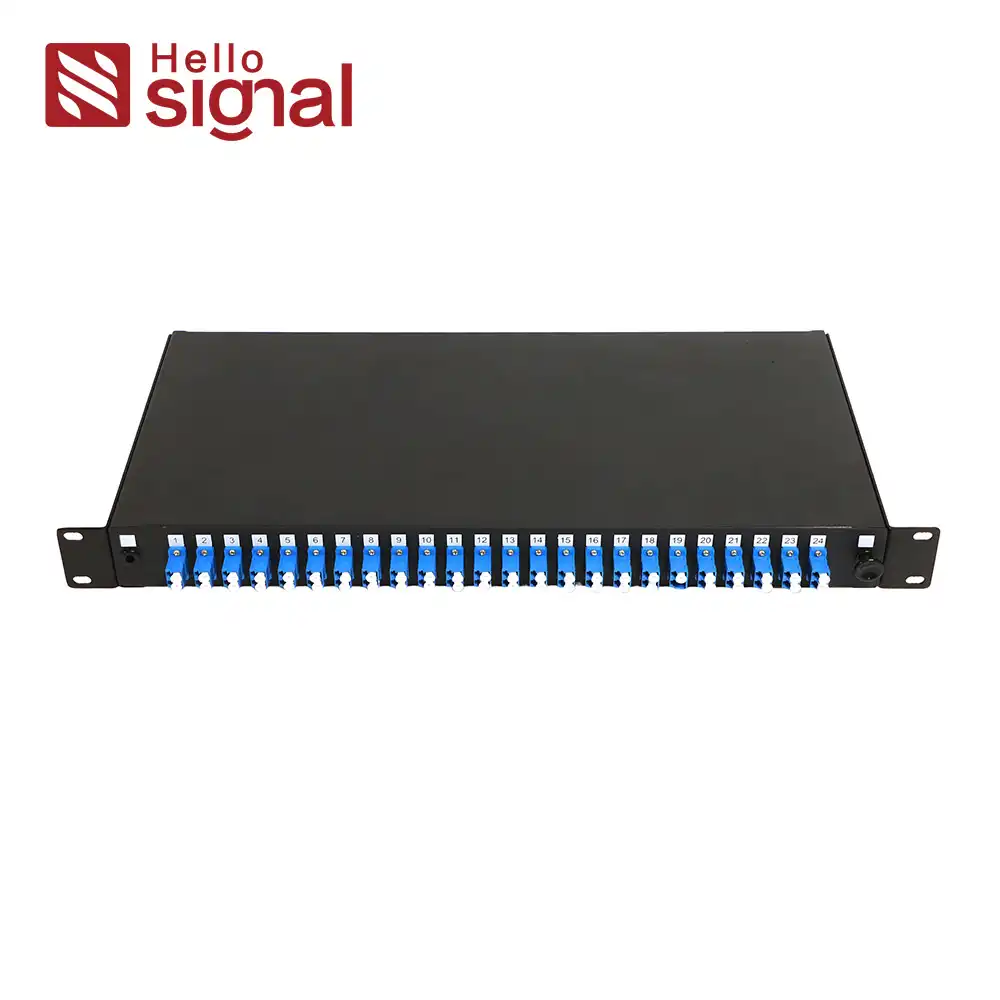

6/12/24/48-Ports Fiber Optic Patch Panel

● Fiber patch panels are also available at various port specs. In data center applications, the most common specs are 6-port, 12-port,

and 48-port fiber patch panels.

Fiber Patch Panel6

Rack Mount/ Wall Mount Fiber Optic Patch Panel

Fiber optic patch panels are commonly loaded in a fiber patch panel enclosure and mounted onto 19″, 21″, or 23″ rack systems. The fiber patch panel enclosure is also known as the fiber termination box. Typically, two types of fiber optic termination boxes are available: rack-mountable and wall mountable.

Fiber Patch Panel7

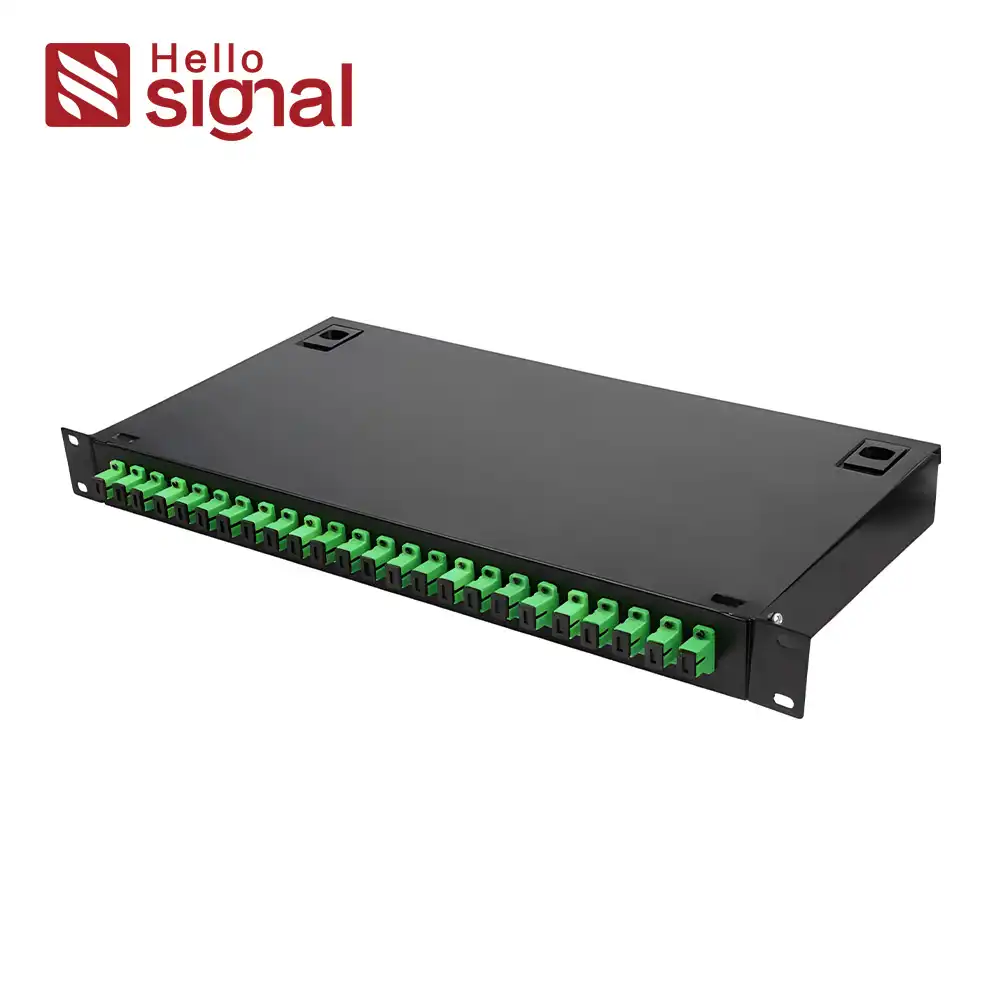

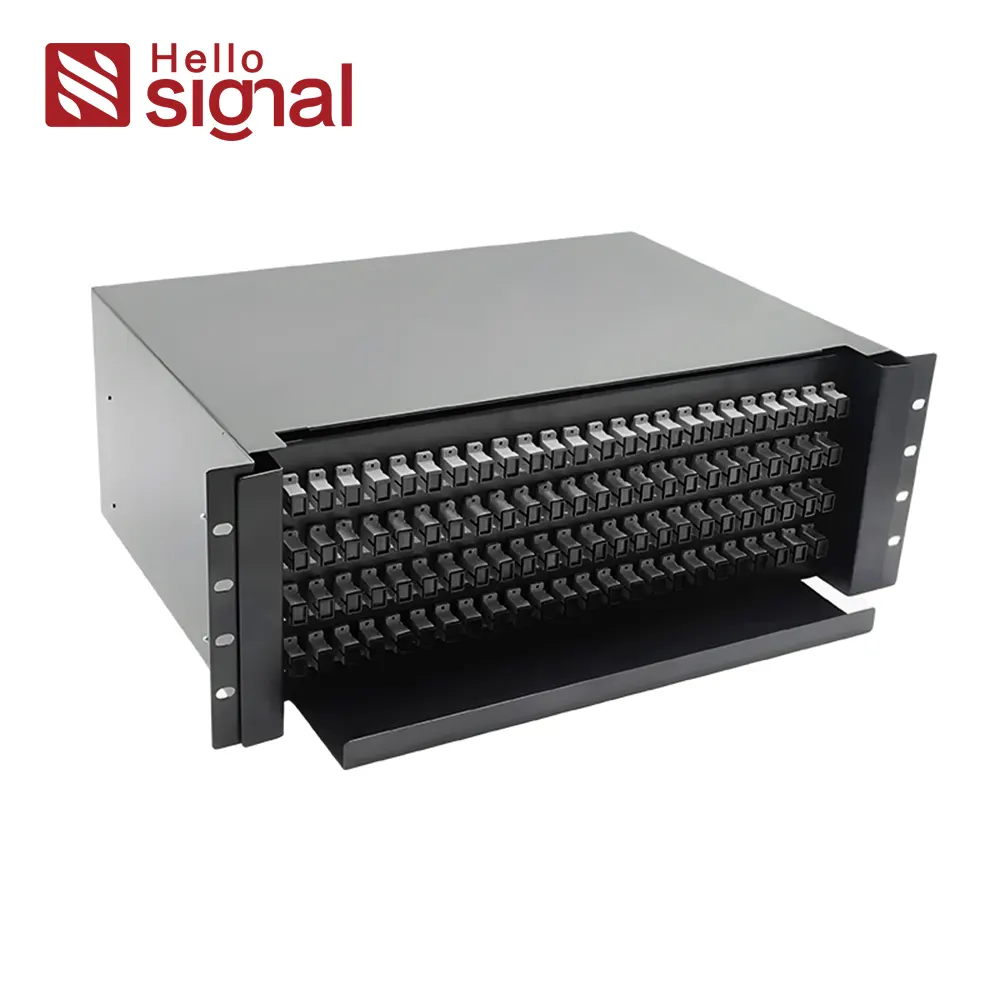

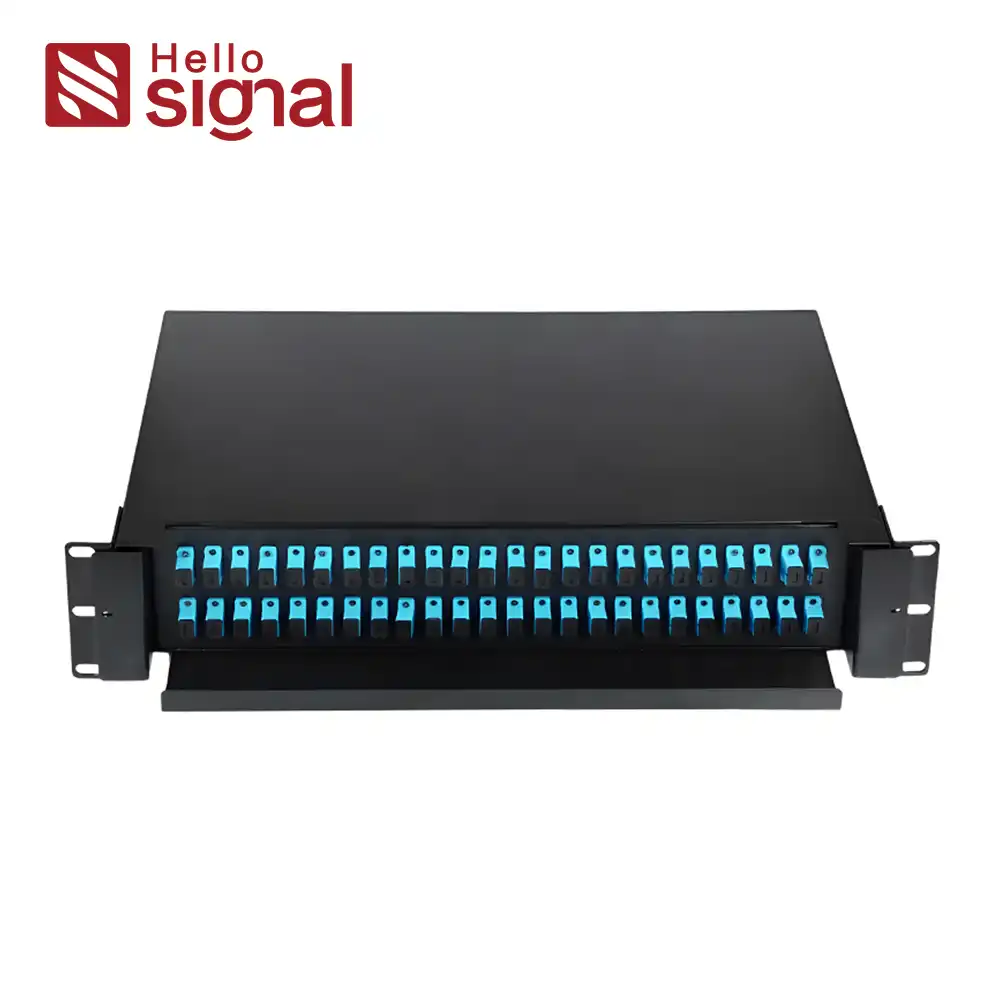

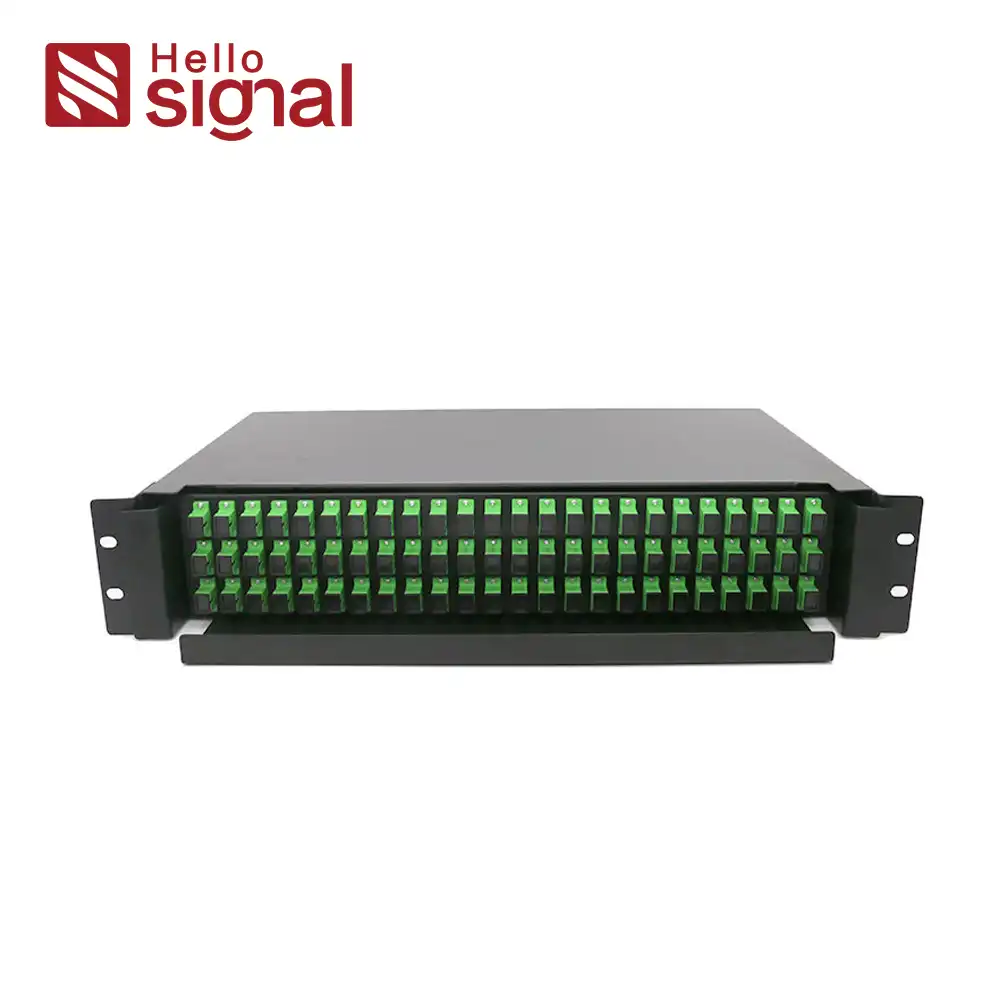

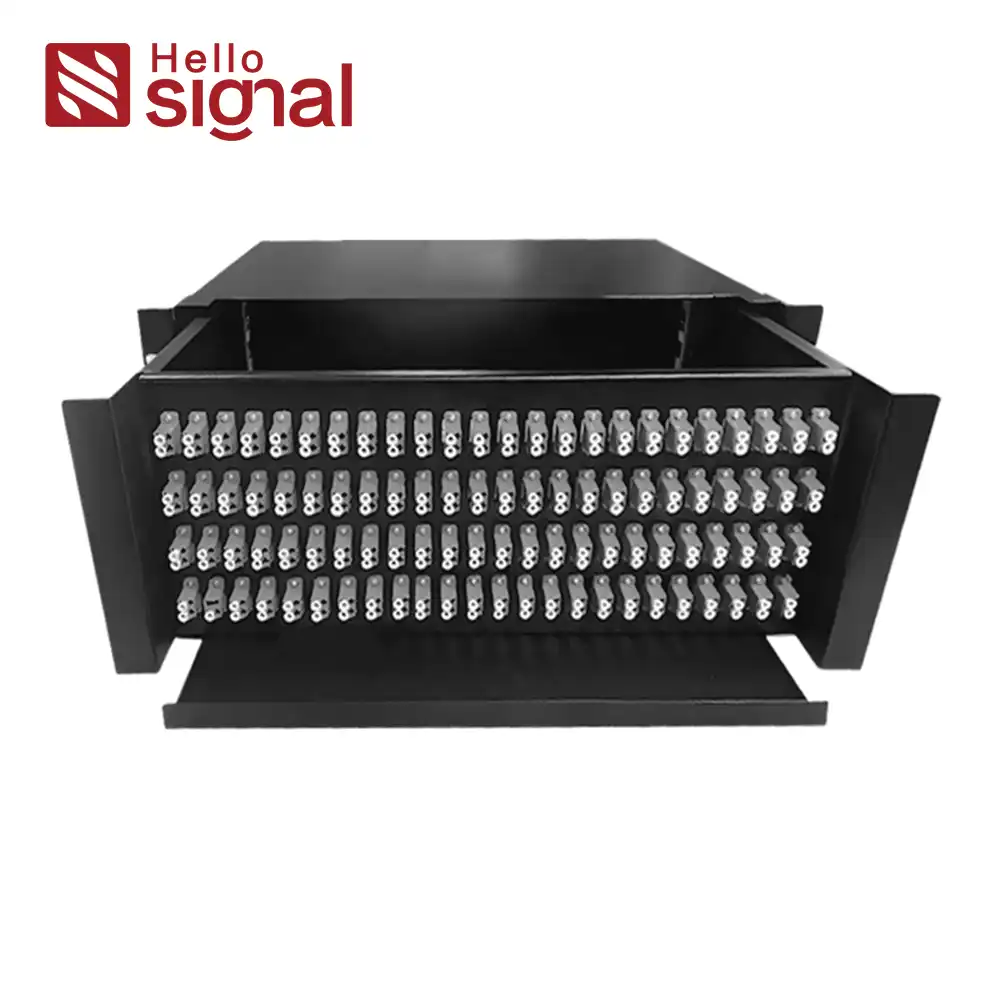

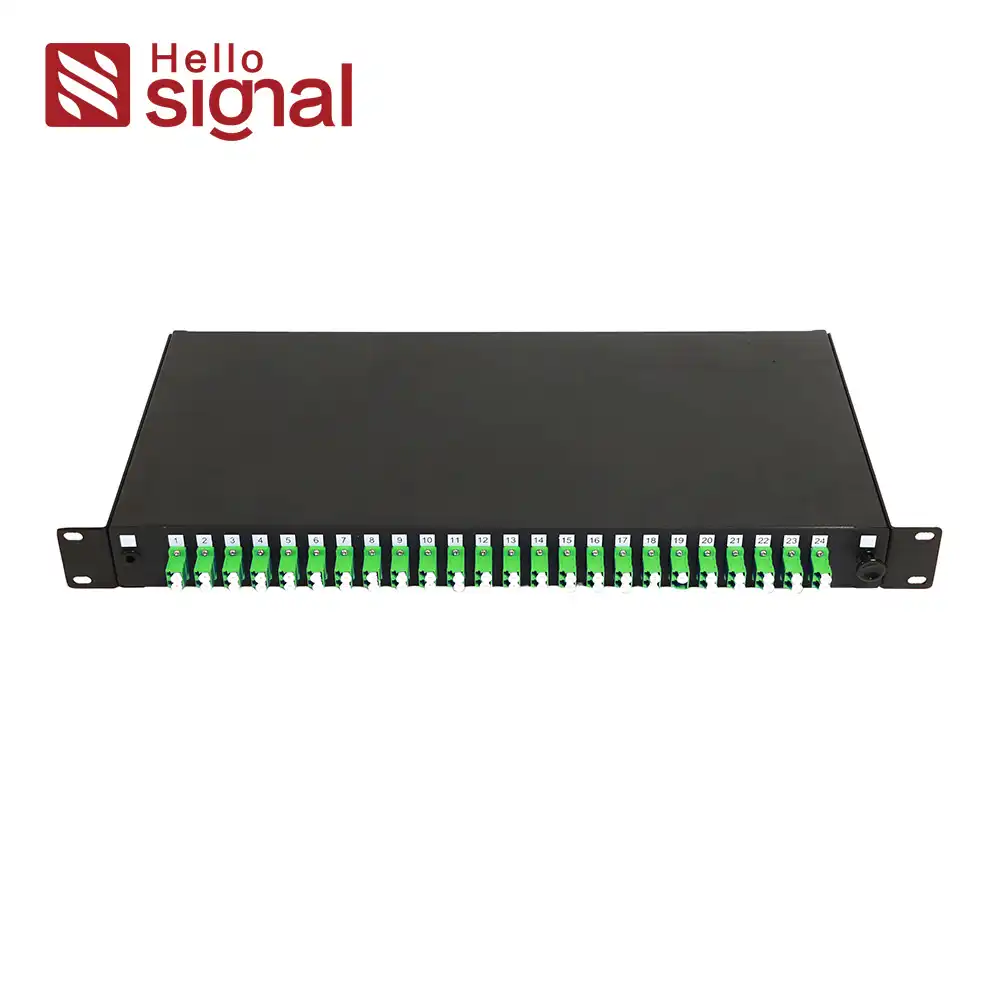

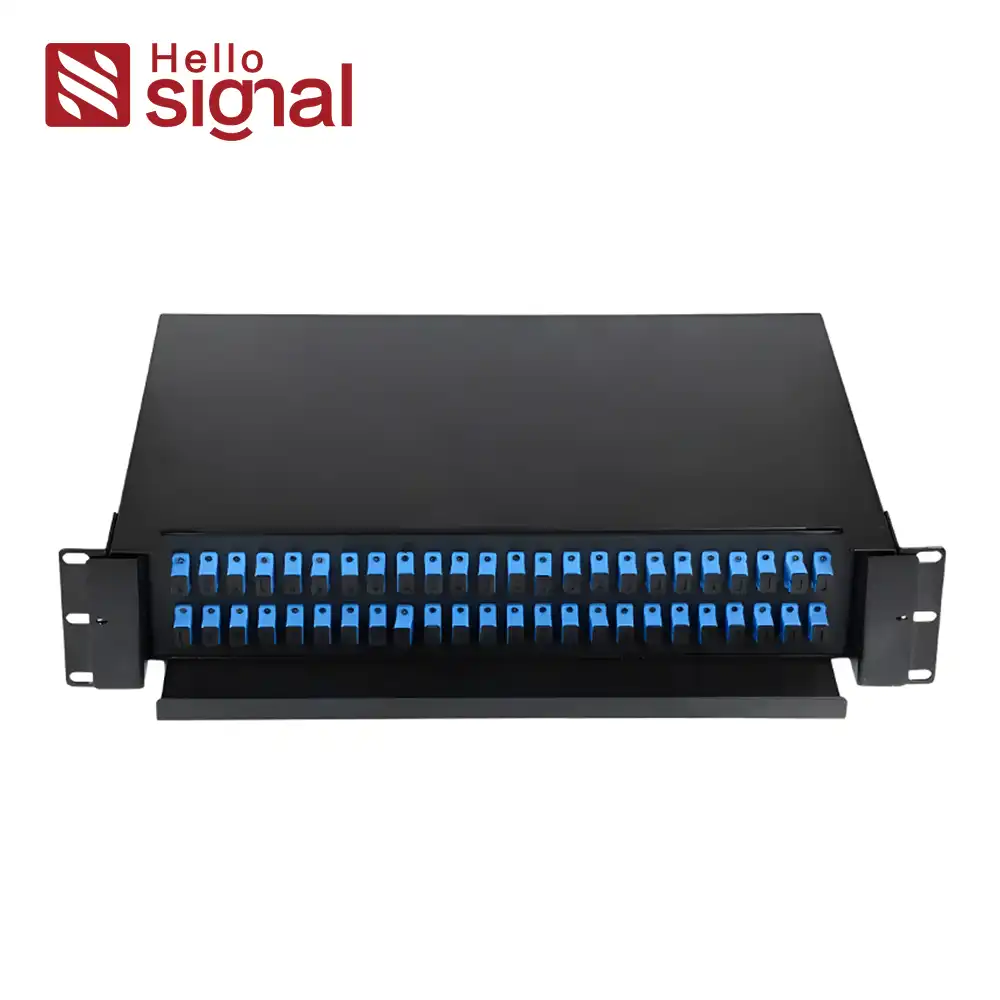

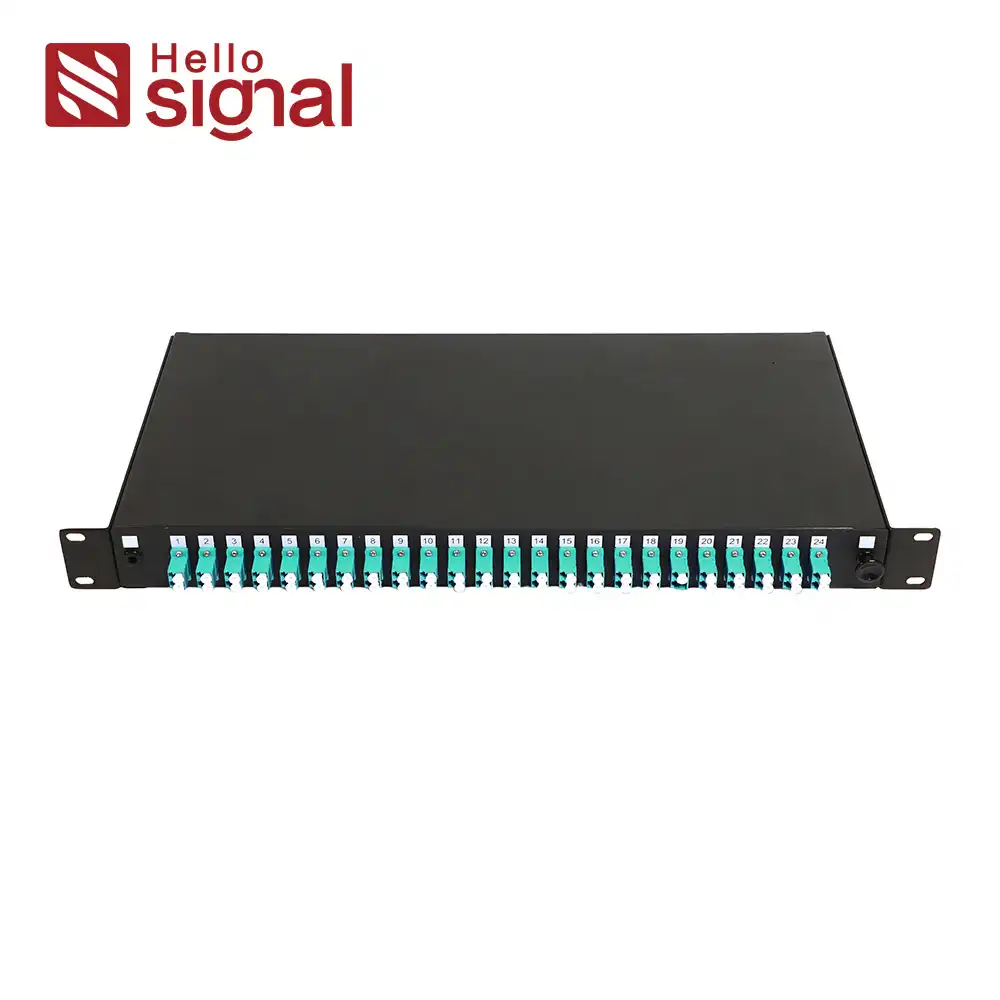

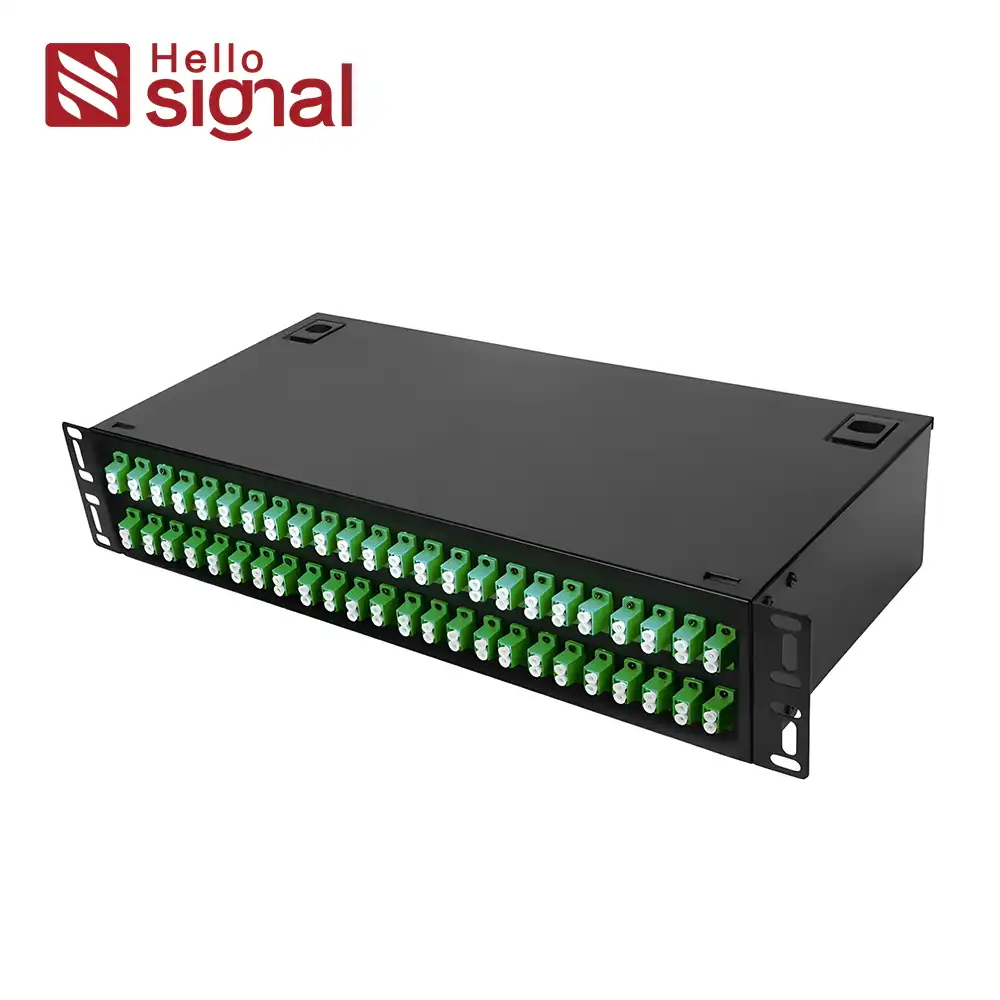

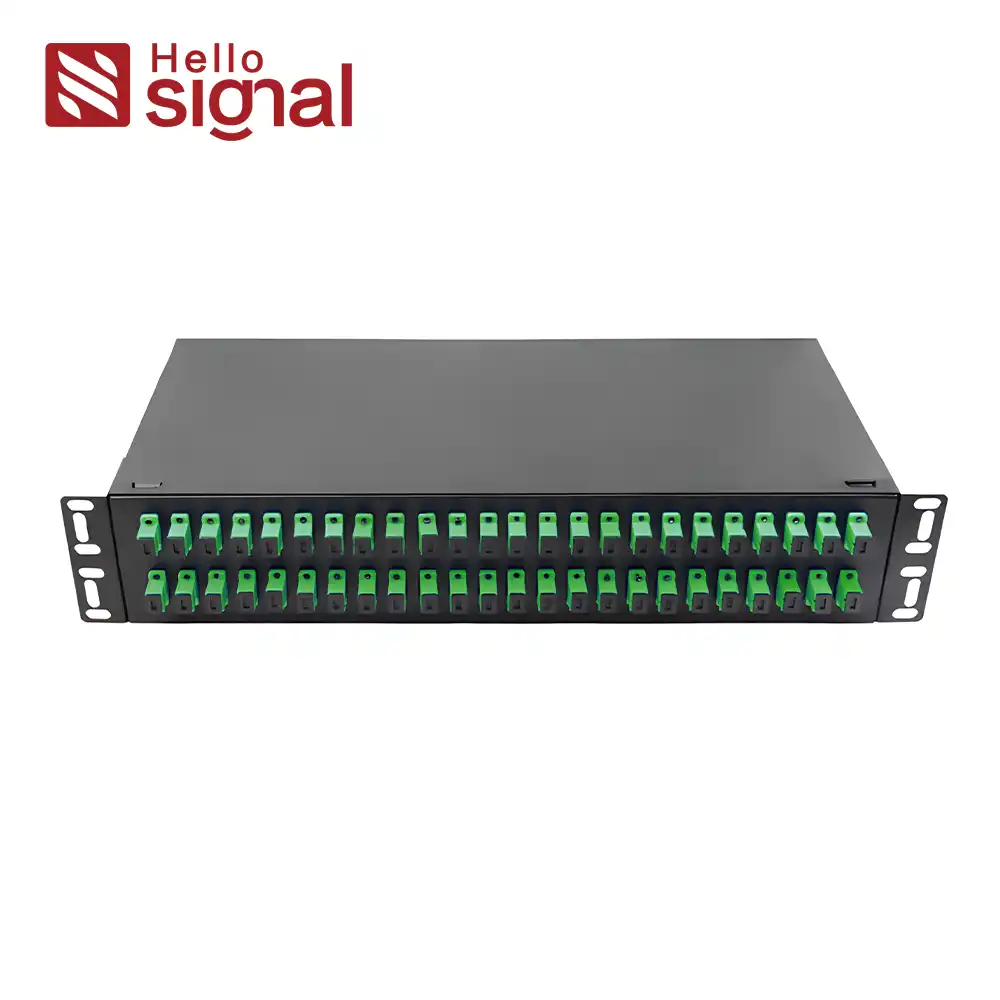

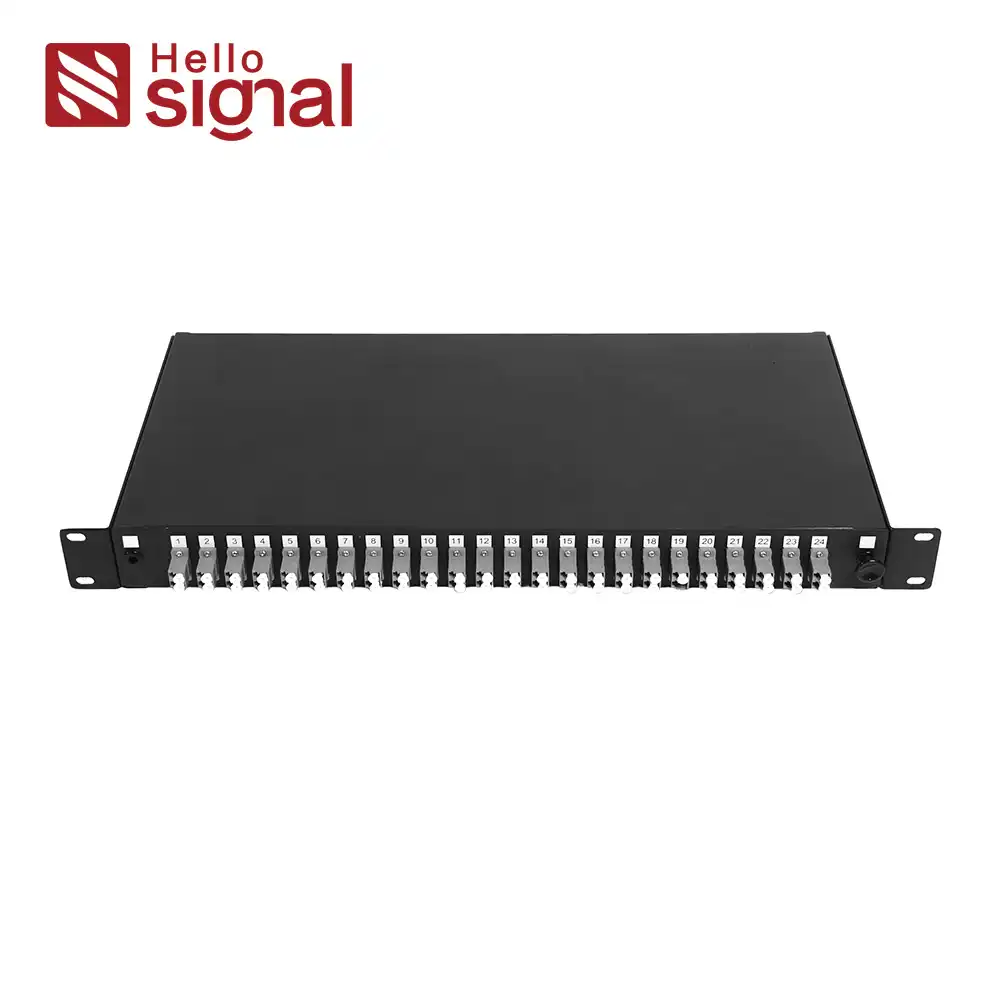

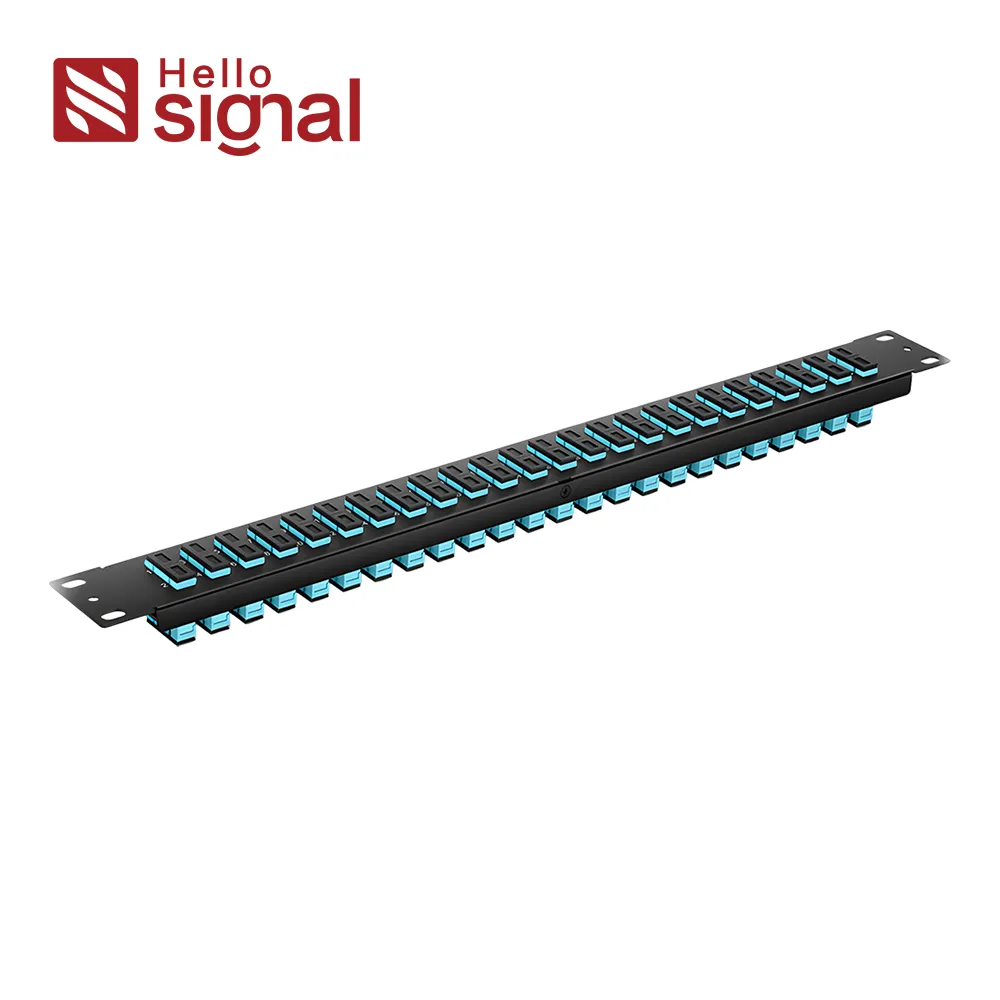

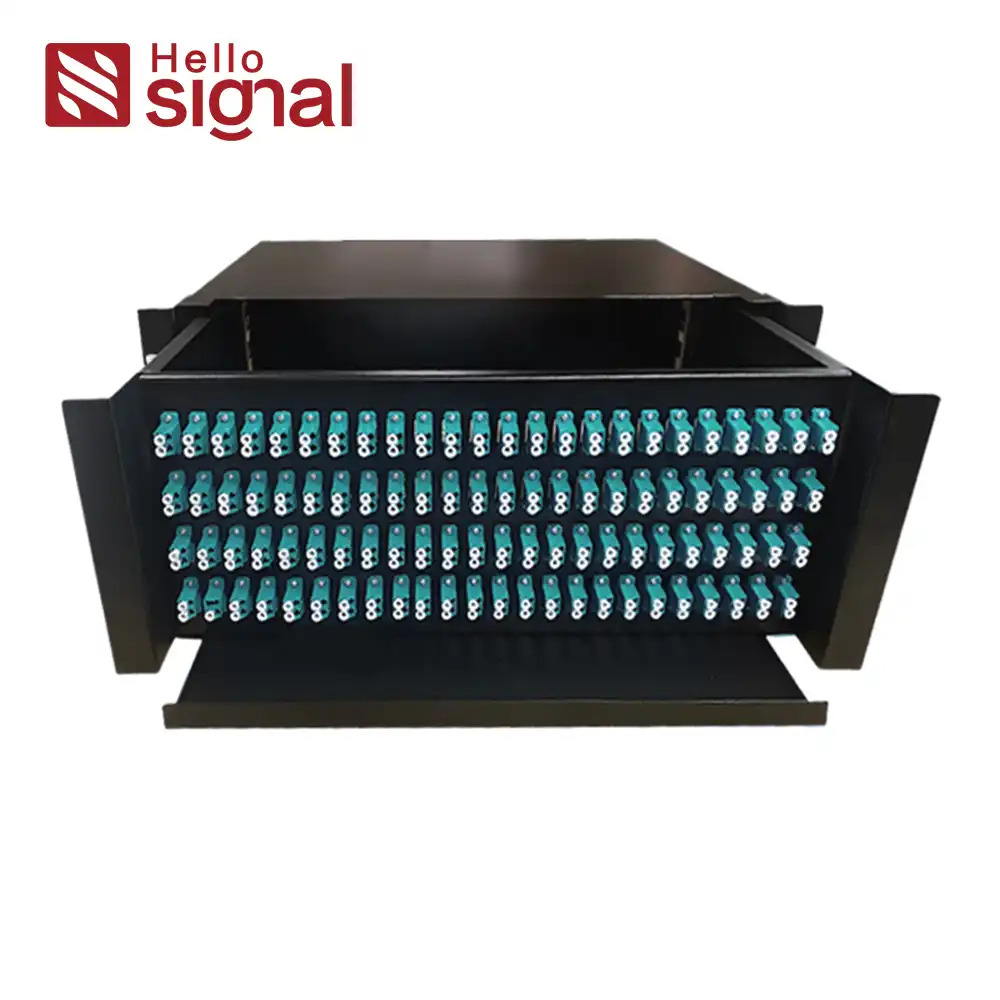

● Rack mount panel holds the fibers horizontally and looks like a drawer. The rack mount panel is designed in 1U, 2U, and 4U
sizes and can hold up to 288 or even more fibers. They can be mounted onto 19″ and 23″ standard relay racks.

A rack-mountable fiber optical cable termination box typically features:

– Allows fiber cable splicing or termination.

– Protects the connection and termination parts of optical fiber cables.

– Stores and manages optical fiber cables.

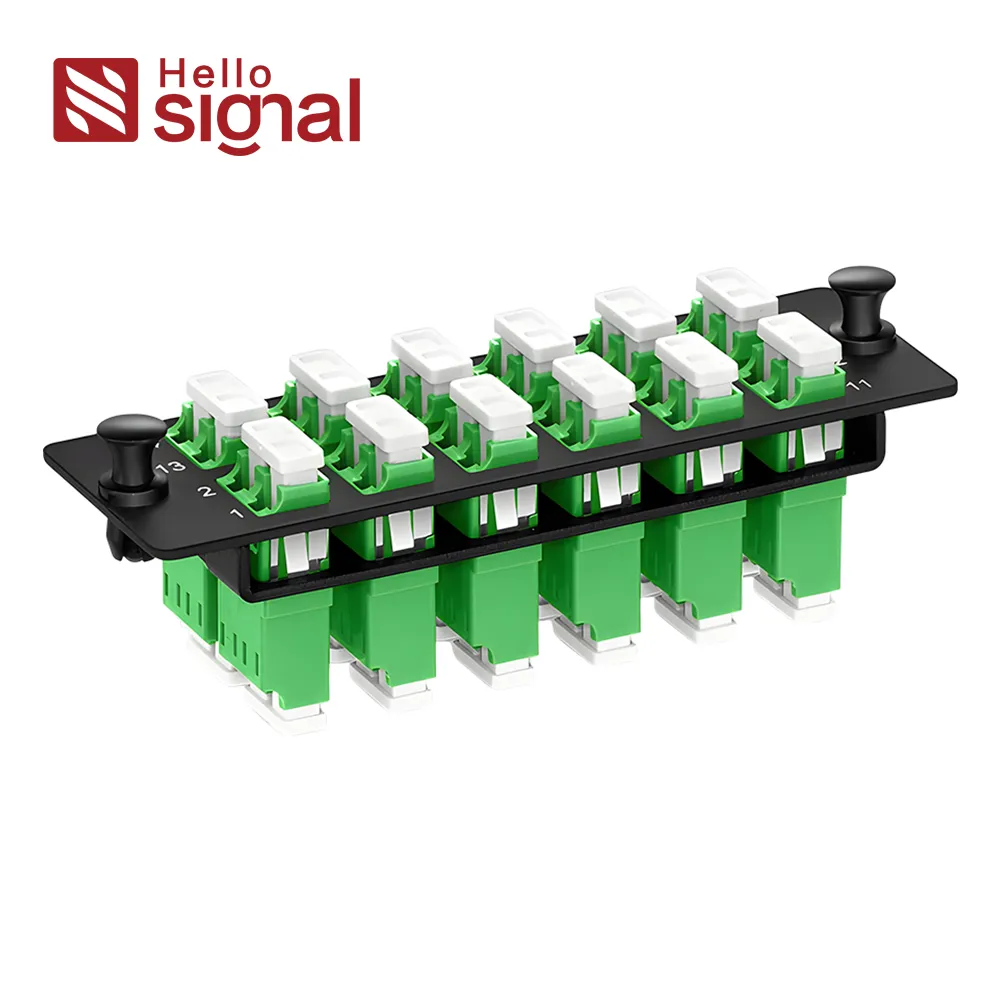

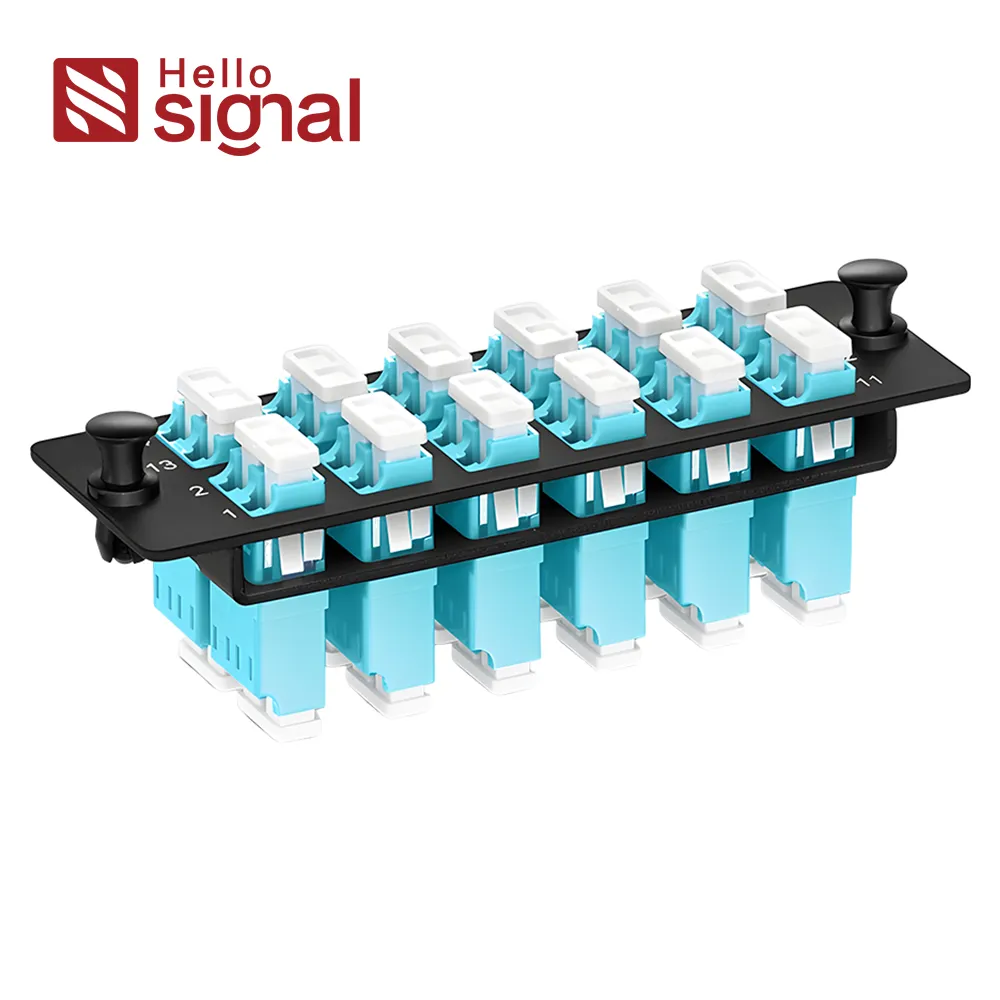

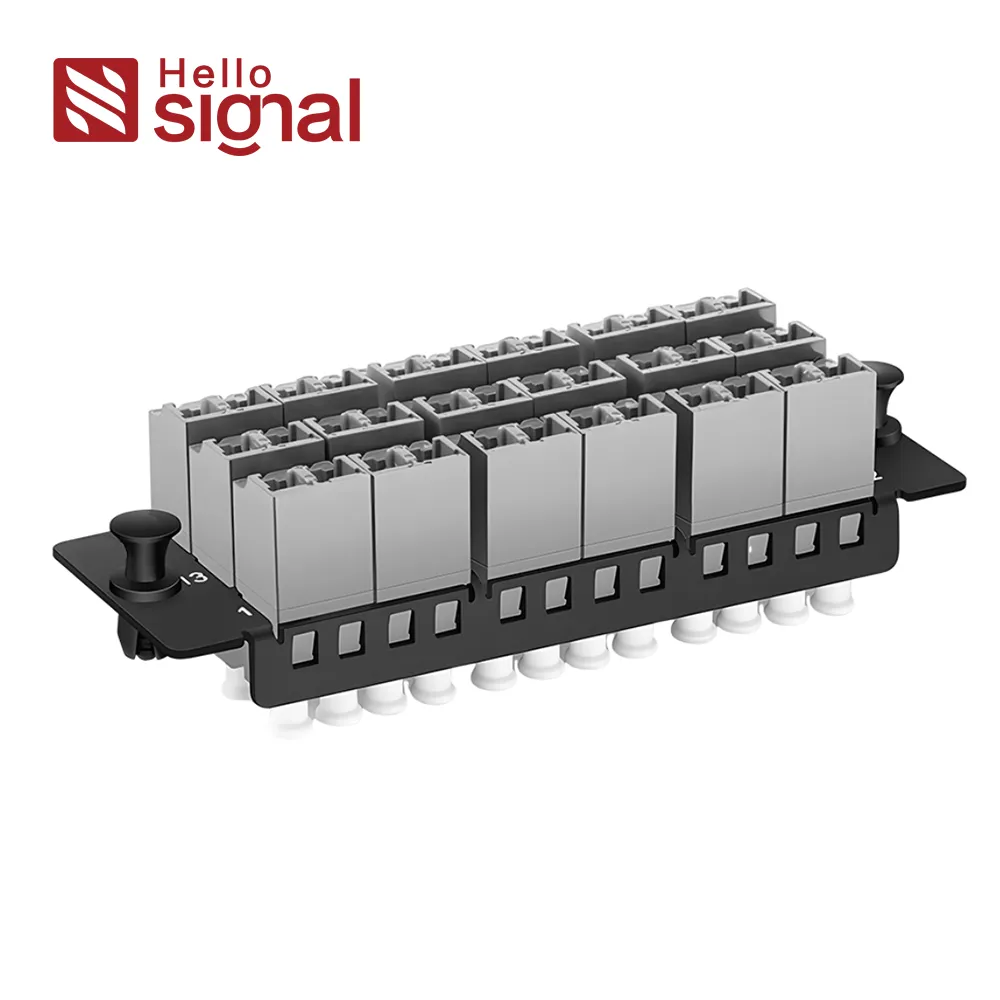

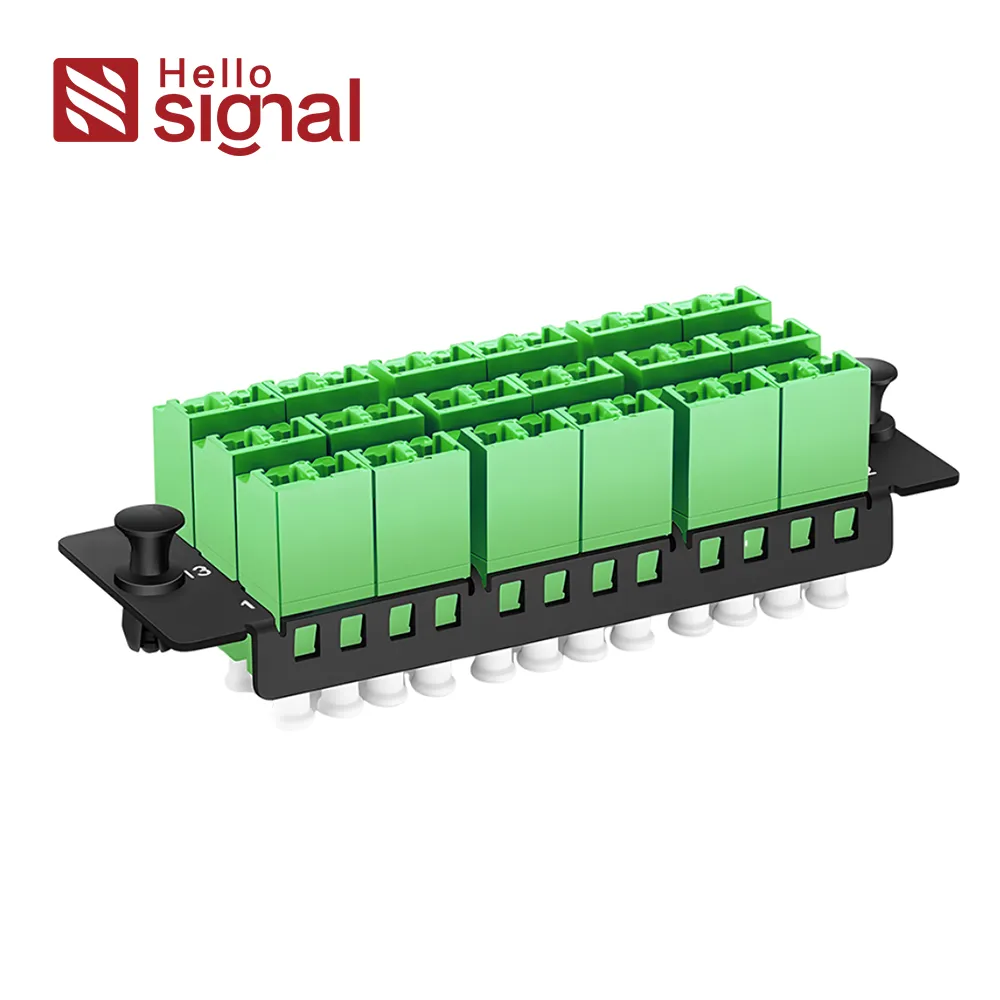

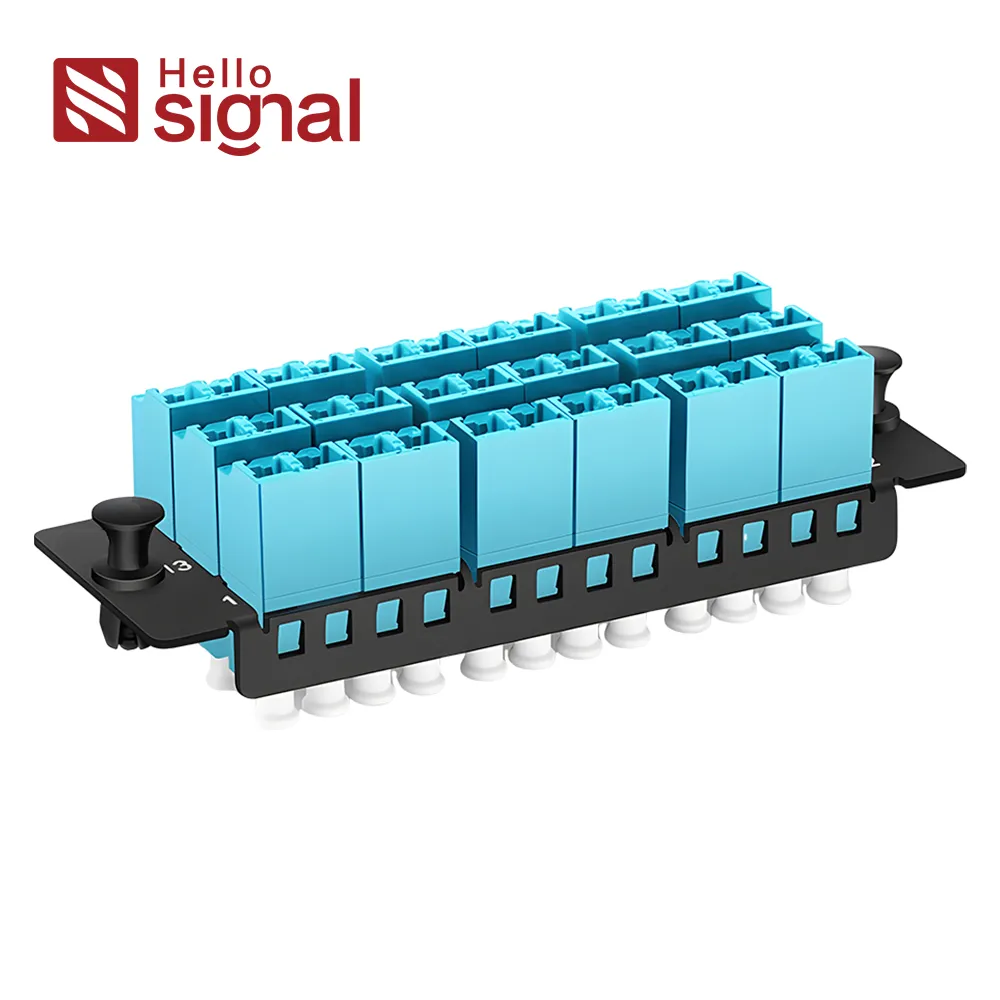

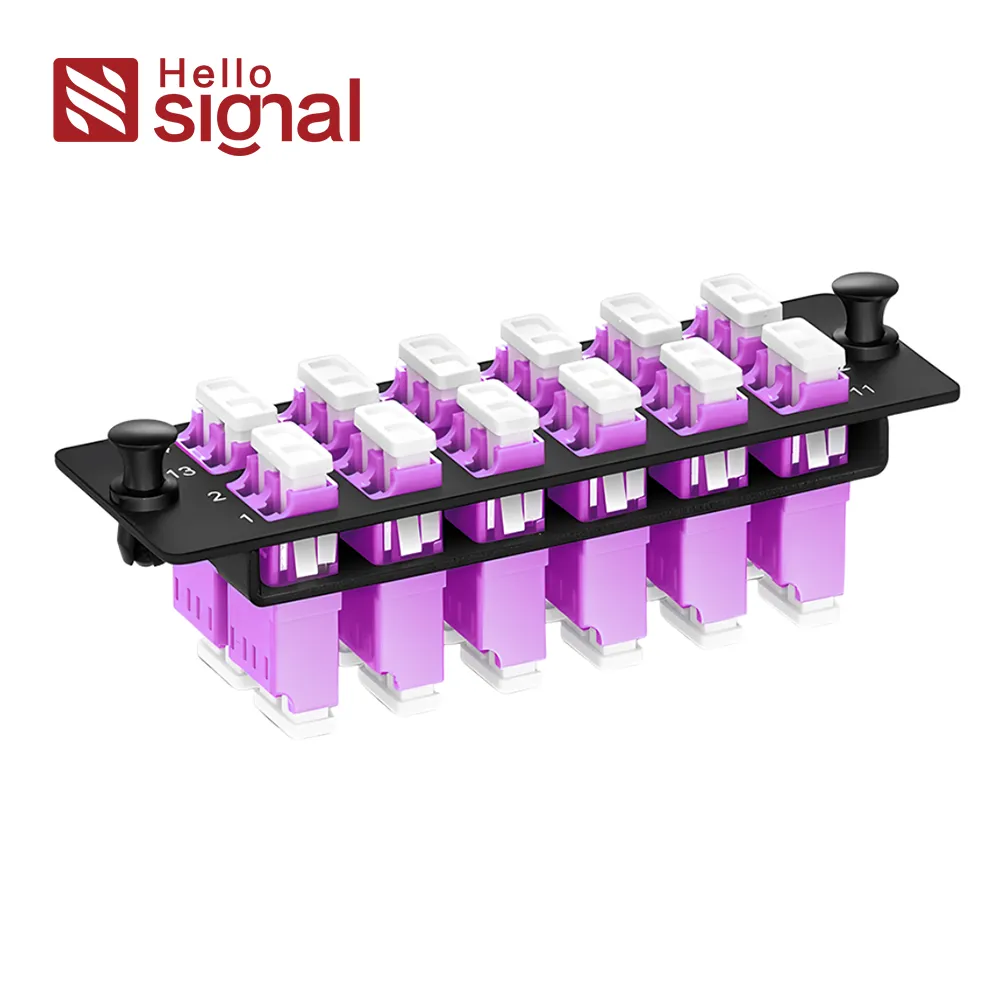

– Allows various types of fiber adapter panels, such as LC, SC, MTP, etc.

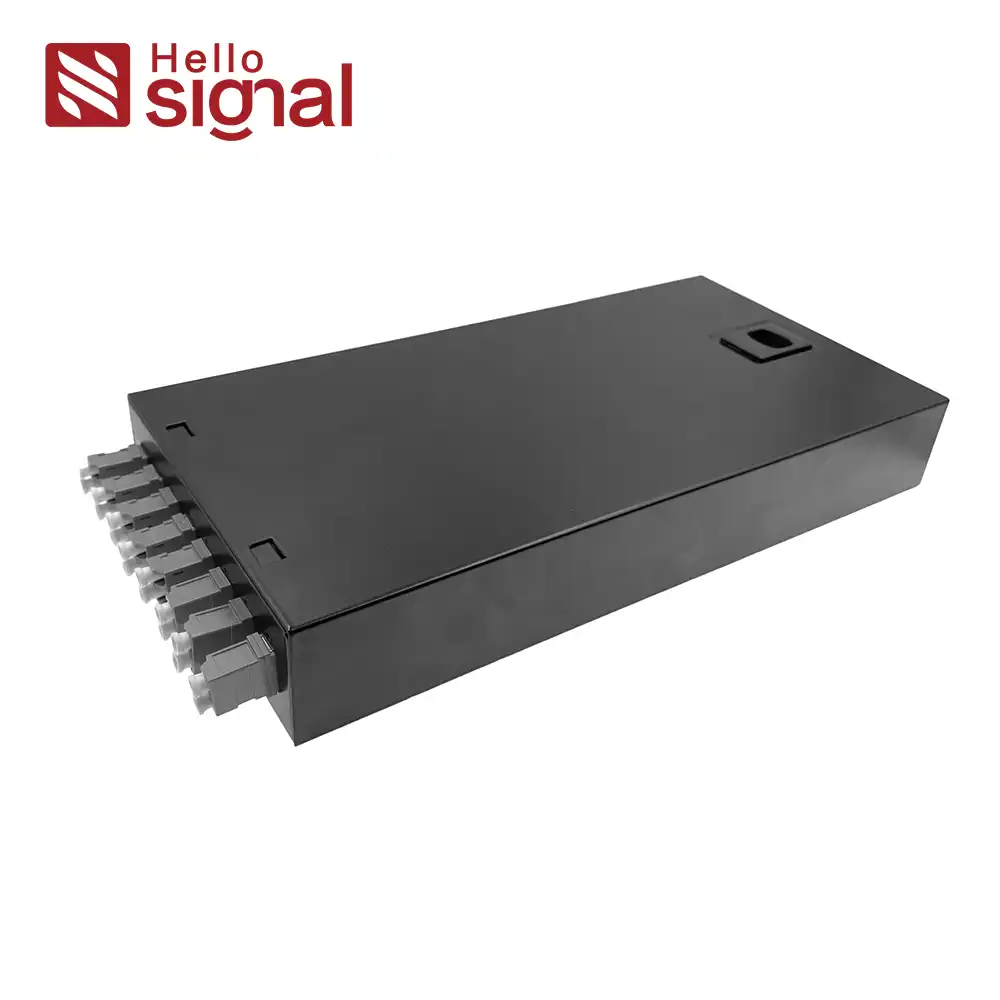

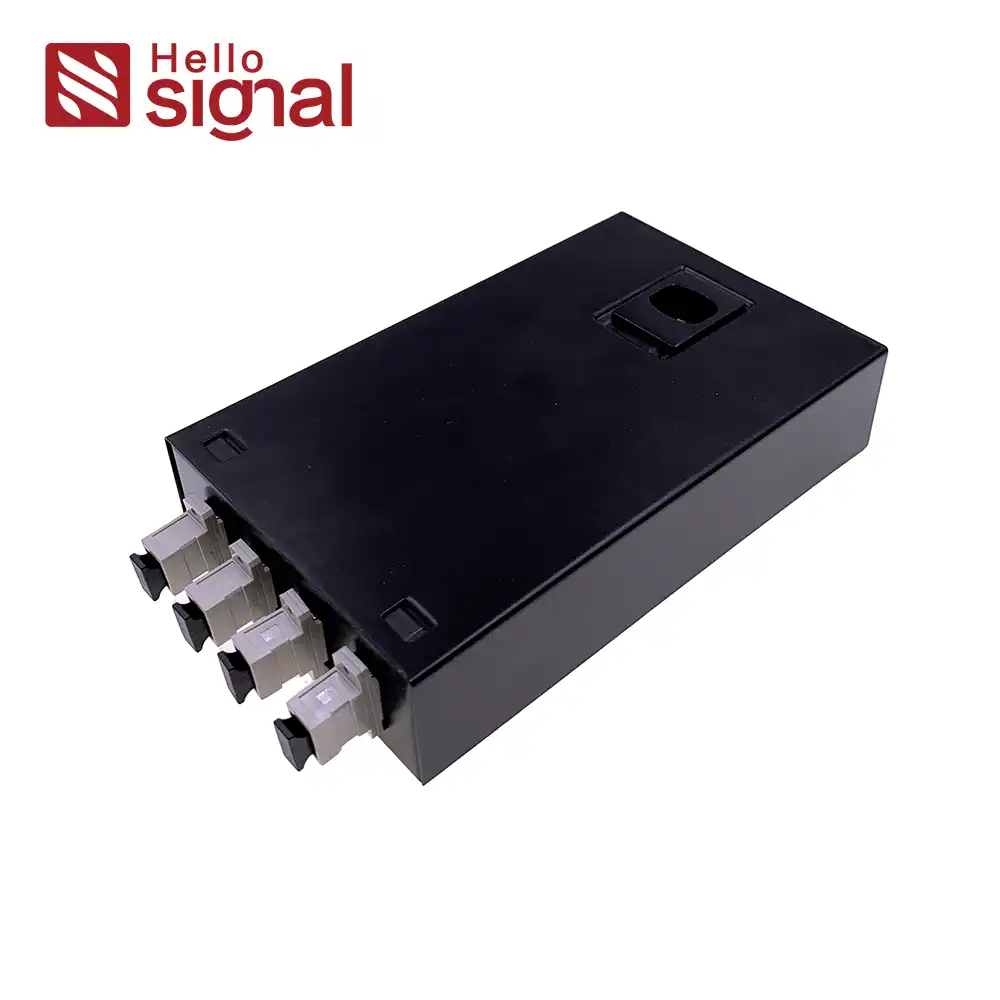

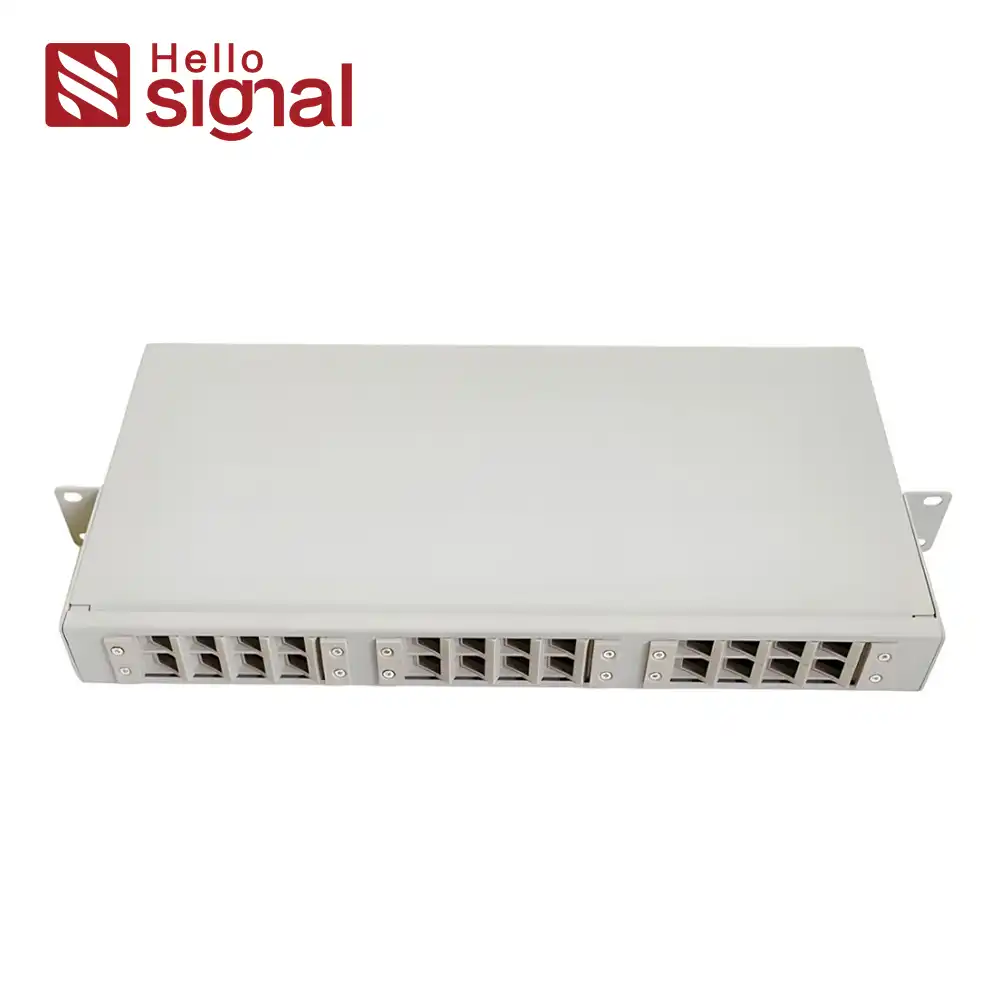

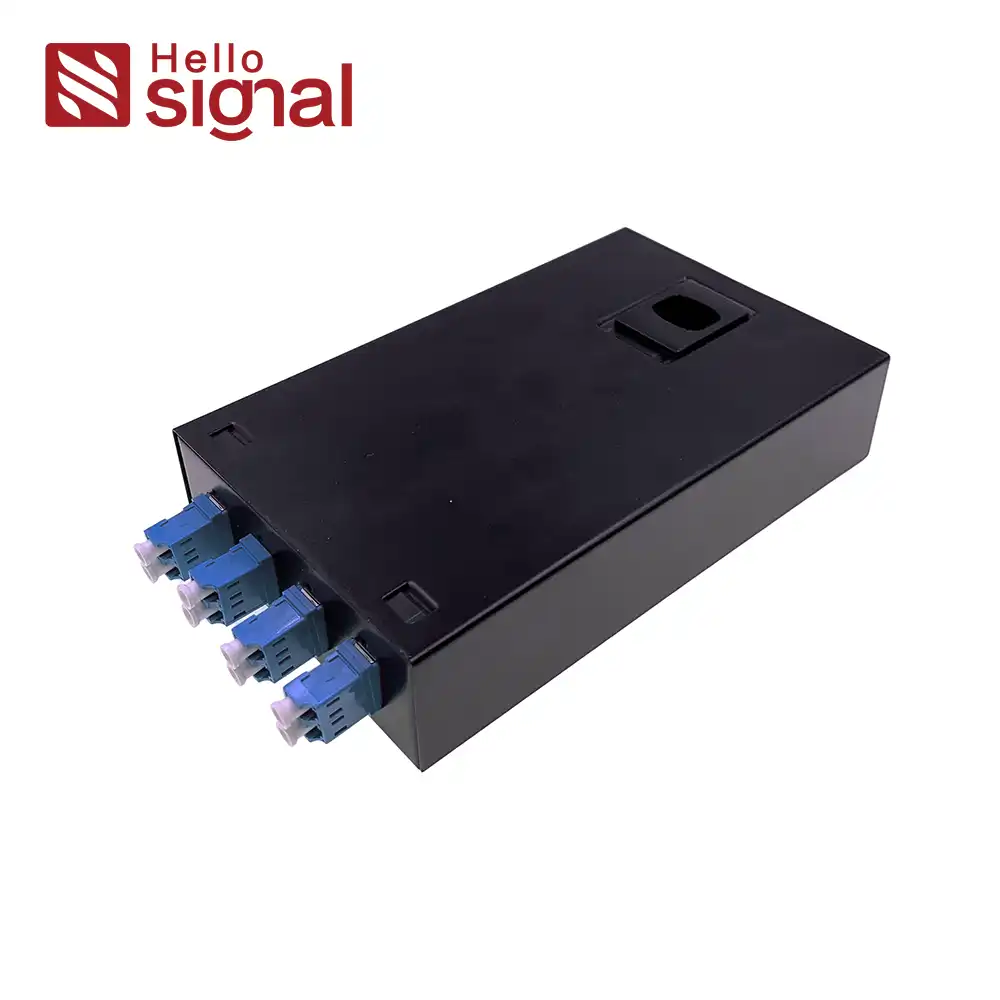

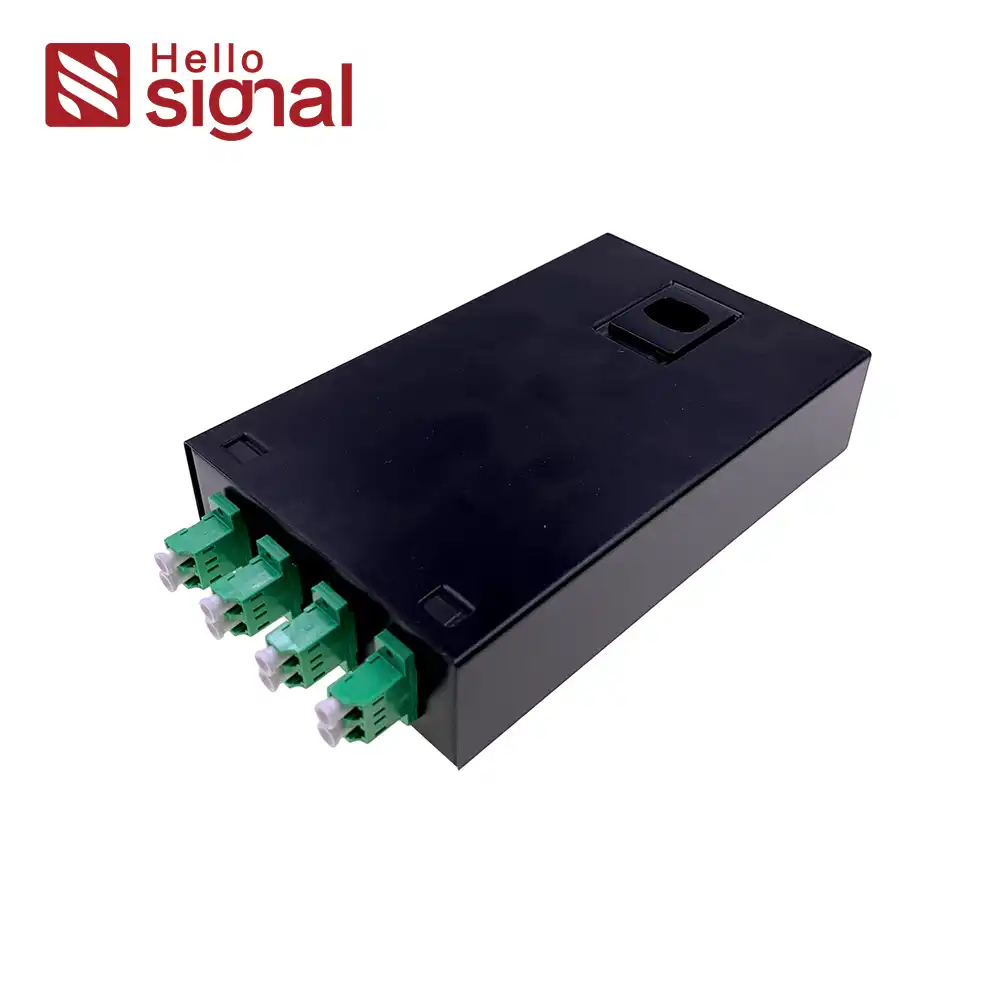

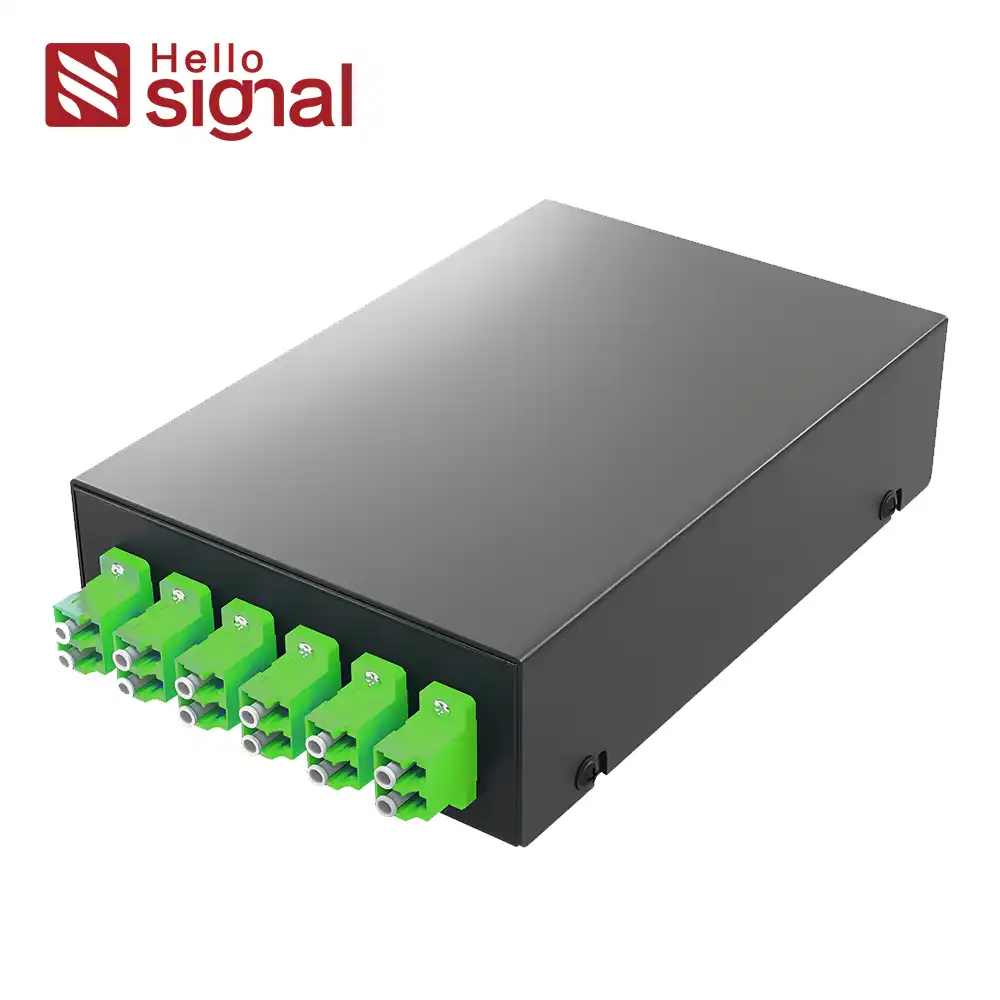

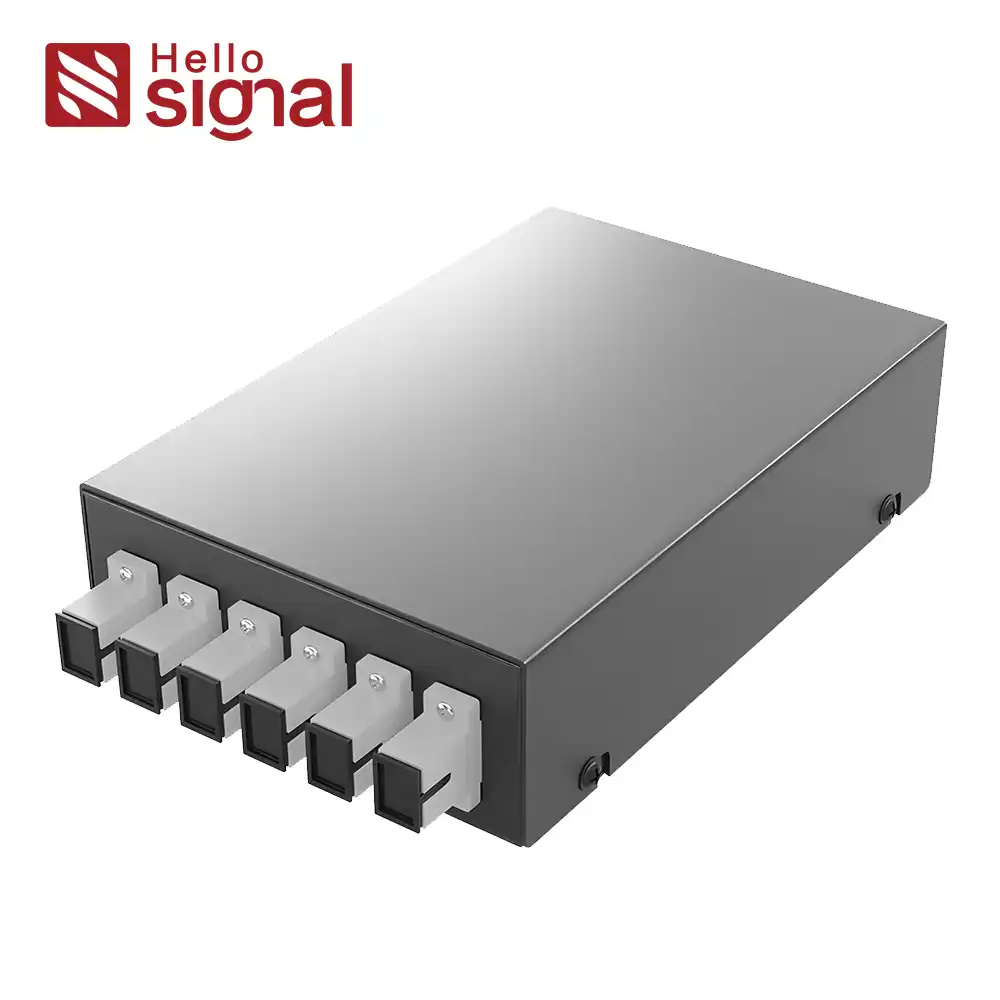

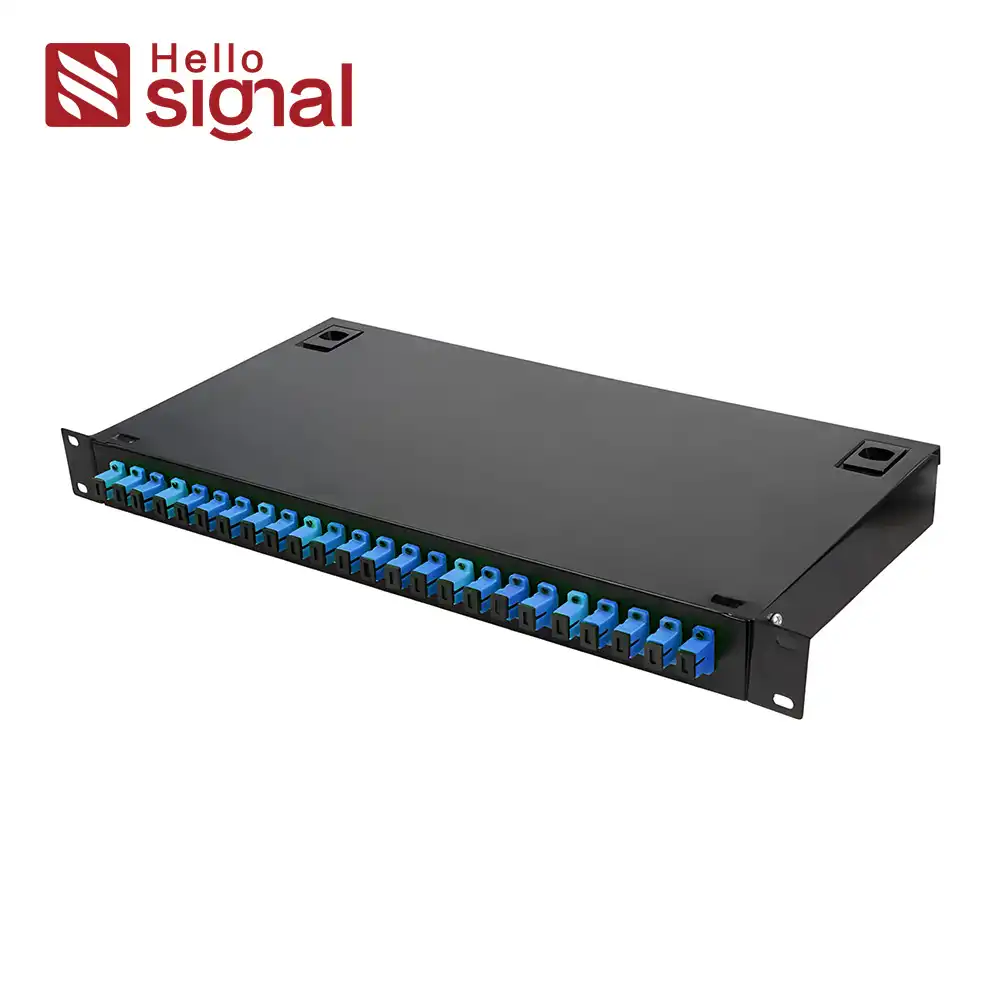

Wall-mount fiber patch panels can be easily mounted to any wall using internal mounting holes.

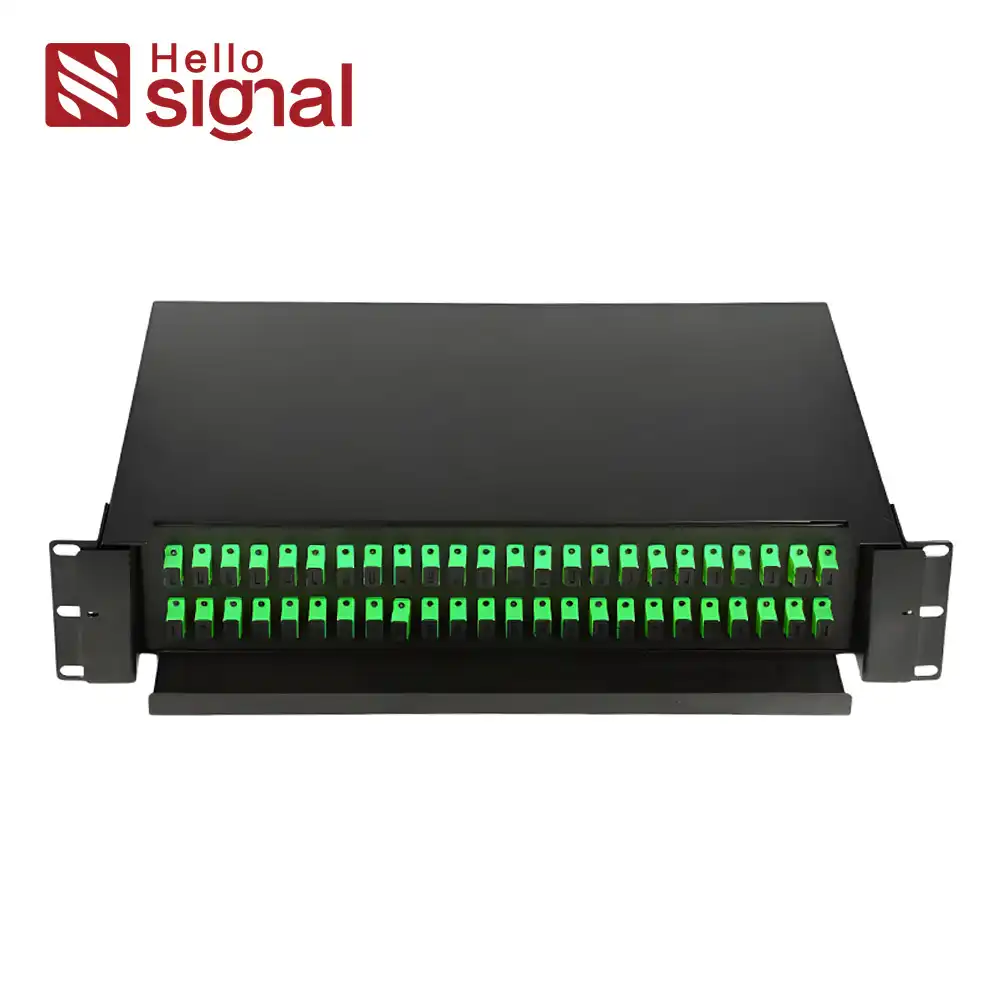

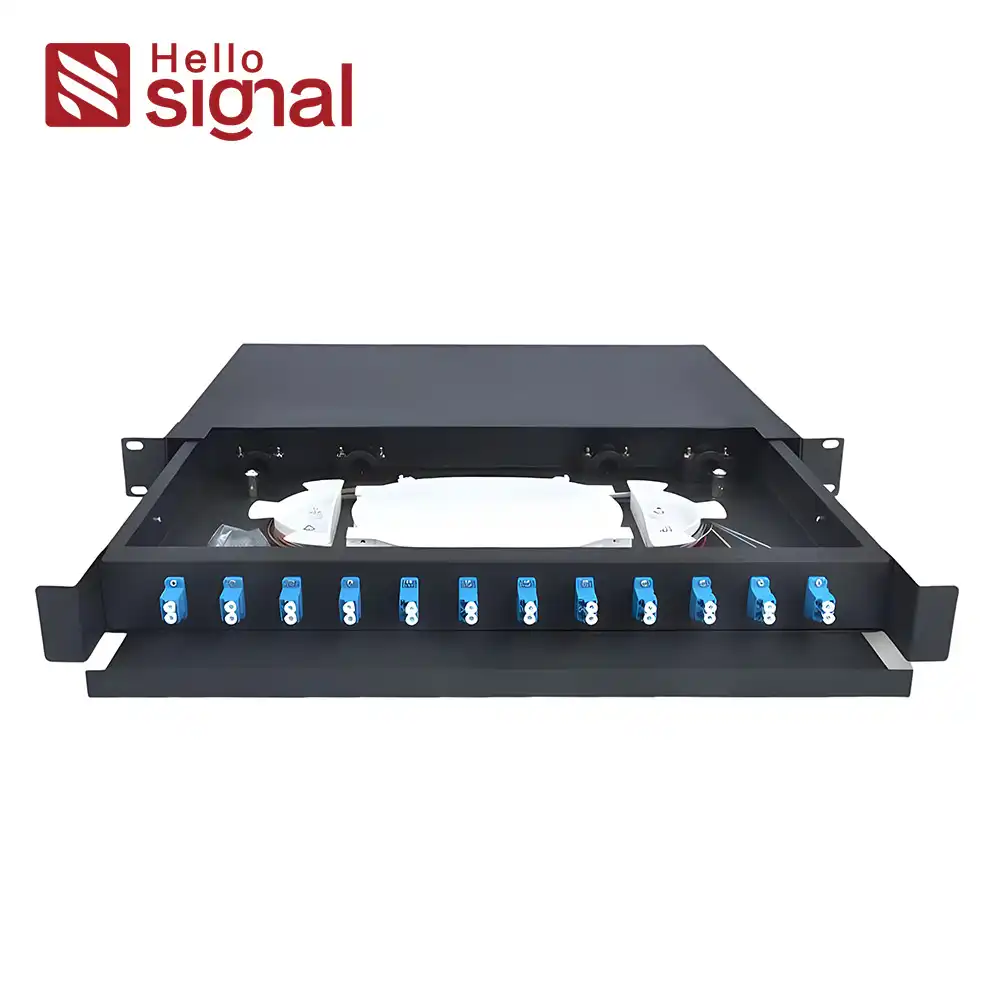

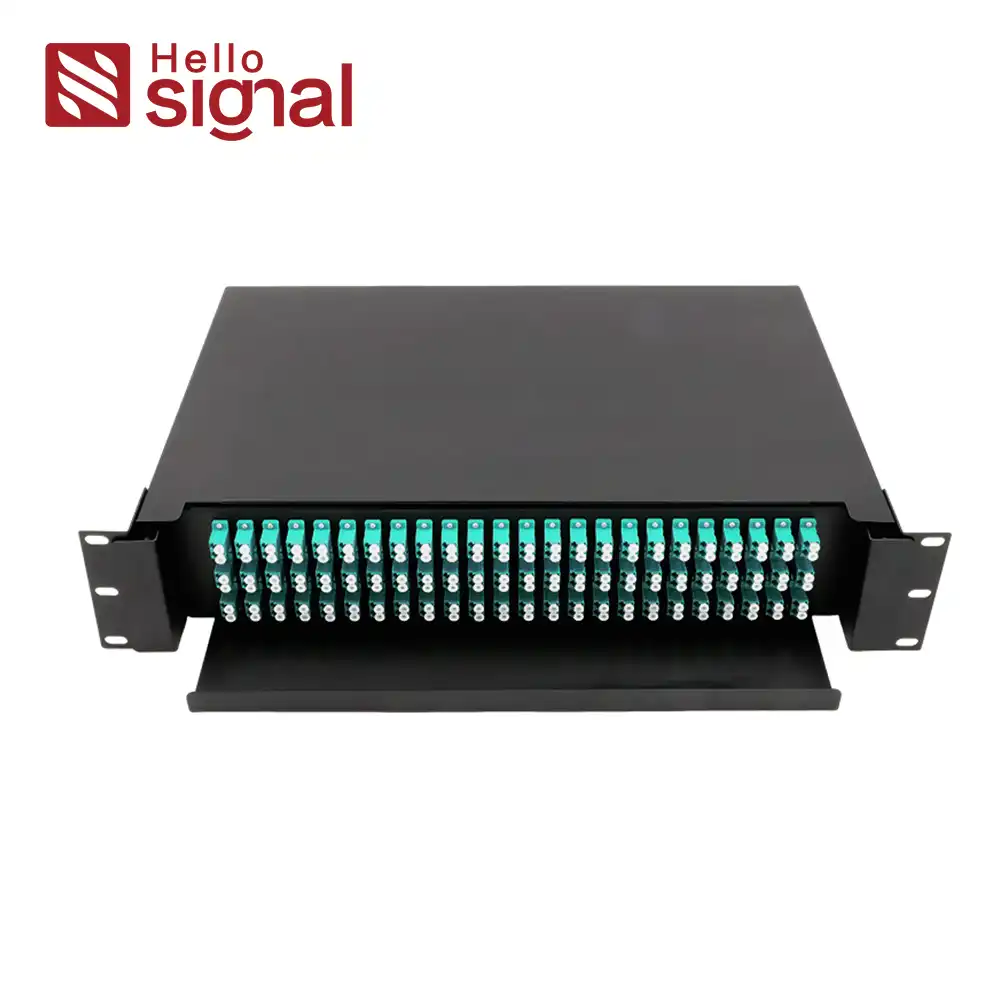

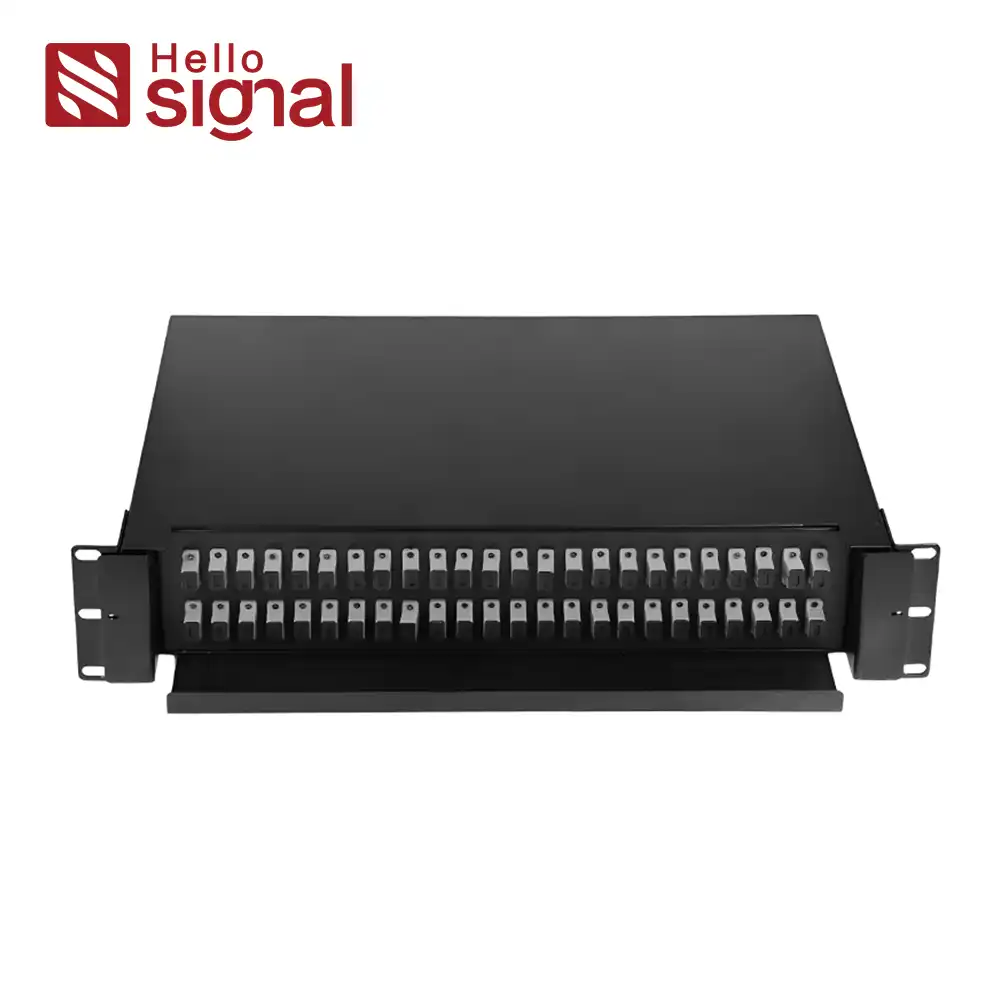

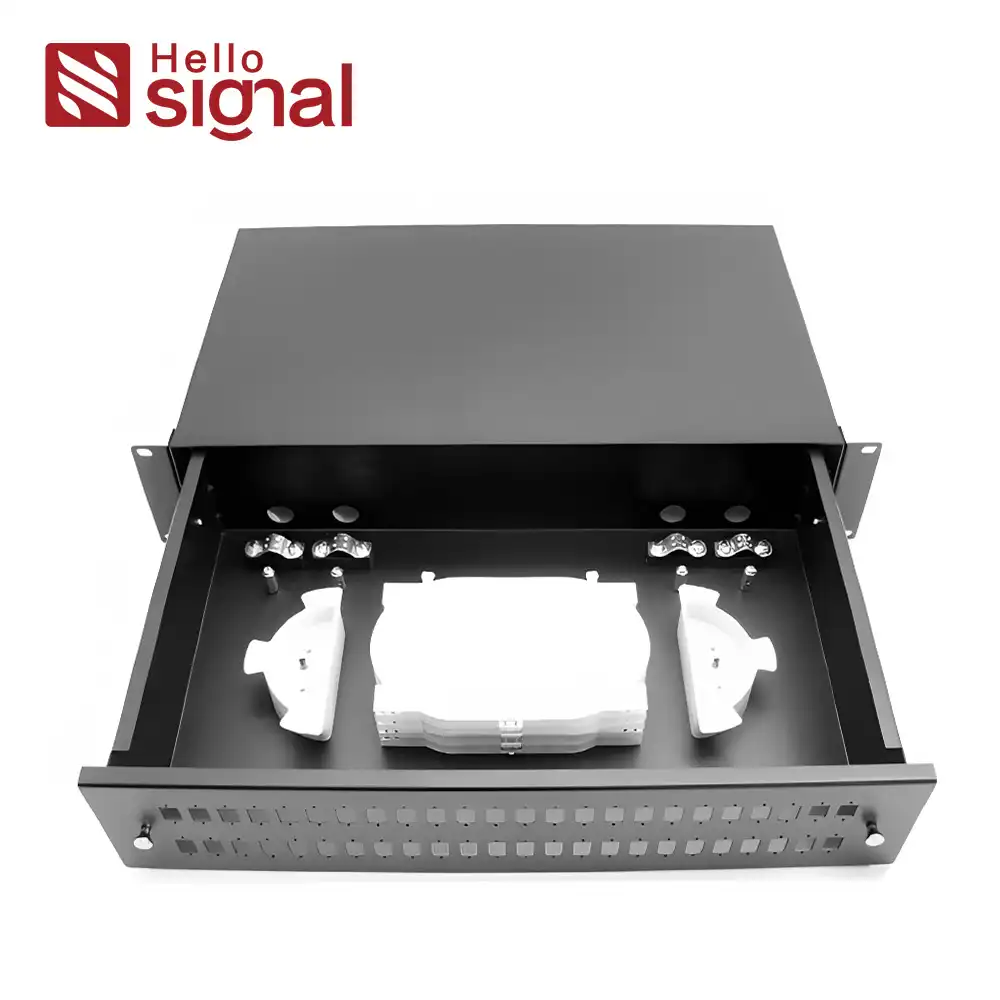

Slide out Fiber Enclosure/Removable Lid Enclosure Fiber Optic Patch Panel

The sliding design of panels gives engineer easy access to the fibers inside but itʼs more expensive.

The removable lid type is less expensive but requires the user to remove the whole enclosure from the rack to gain internal access.

Fiber Patch Panel8

Loaded with Adapter Fiber Patch Panel VS Unloaded with Adapter Fiber Patch Panel

Loaded fiber patch panel, users should select the adapter and pigtail according to their fiber connector type or use a splice tray for single- and mass-fusing.

● Unloaded fiber patch panel is more flexible than the loaded one, but may need an extra purchase for the accessories.

Fiber Patch Panel9

How to select the fiber patch panel?

Selecting the right fiber optic patch panel for your network involves considering several key factors to ensure compatibility, efficiency, and scalability. Here’s a guide to help you make an informed choice of network Size and Scalability:

  • Network Size and Scalability: Assess the current size of your network and anticipate future growth. Choose a patch panel with enough ports to accommodate both present needs and potential expansion. Consider high-density panels for large networks or data centers.

  • Type of Fiber Optic Cables & Connectors: Identify the type of fiber optic cables in your network (single-mode or multimode) and select a panel that is compatible with these cables. The panel should also support the specific fiber optic connectors (LC, SC, ST, etc.) used in your network.

  • Space and Installation Environment: Determine where the panel will be installed. If space is limited, a wall-mounted or compact panel might be more suitable. For outdoor installations, choose a panel designed for outdoor use with weather-resistant features.

  • Rack Space: For rack-mounted panels, consider the available rack space and select a panel with the appropriate size (measured in rack units, U). Ensure that the panel fits into your existing rack configuration.

  • Cable Management system: Good cable management is crucial for maintaining network reliability and ease of maintenance. Look for panels with robust cable management features, like cable routing guides, labels, and easy access points.

  • Port Density and Modular Options: High-density panels offer more ports in a smaller space, which is beneficial in environments like data centers. Modular panels provide flexibility, allowing you to customize the layout and type of connections.

  • Ease of Access and Maintenance: Consider how easy it is to access the panel for maintenance or reconfiguration. Panels with swing-out or sliding trays can be more convenient for frequent access.

  • Budget and Cost-Effectiveness: Balance your budget with the quality and features of the panel. While cost is a factor, investing in a panel that offers reliability and scalability can be more cost-effective in the long run.

  • Manufacturer and Warranty: Choose a reputable manufacturer known for quality products. Check the warranty and support options available for the panel, as this can be crucial for long-term maintenance and troubleshooting.

  • Compliance with Standards: Ensure that the panel complies with relevant industry standards and regulations for safety and performance.

  • By carefully evaluating these factors, you can select a fiber optic patch panel that meets your network’s current needs and is adaptable for future expansions or changes.
